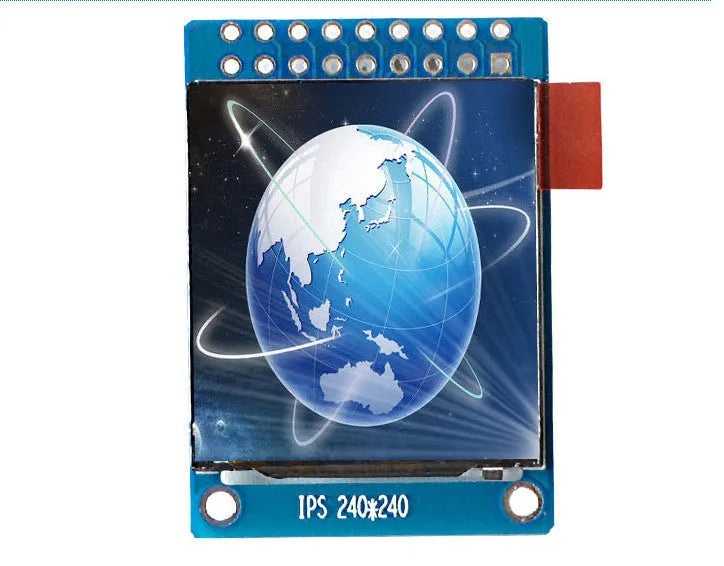

1.3 Inch 240x240 IPS LCD Display with ST7789 Chip for Microcontroller Projects

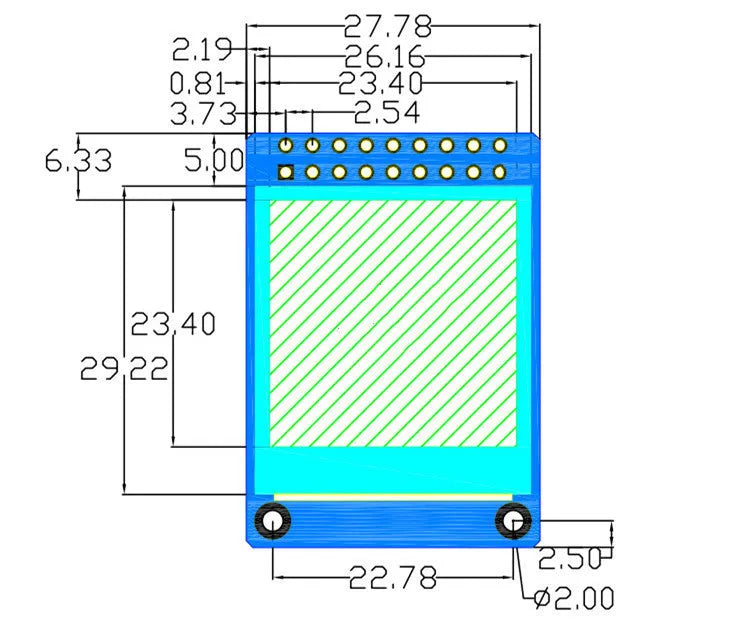

This compact 1.3 inch IPS LCD display module provides a full-colour square interface specifically designed for microcontroller applications where space is limited but visual clarity is essential. With its 240x240 resolution and high-definition IPS technology, this screen delivers noticeably more vivid colours compared to standard TFT LCD alternatives, making it suitable for projects requiring clear status indicators, basic graphical interfaces, or simple user interaction elements. The display's 23.4x23.4mm viewable area presents information effectively within a minimal 27.78x39.22mm physical footprint, allowing integration into space-constrained designs without sacrificing readability.

Features and Construction

The display combines modern IPS panel technology with practical connectivity options for microcontroller integration. Its construction focuses on providing reliable performance across a range of environmental conditions while maintaining compatibility with popular development platforms.

Material and Build

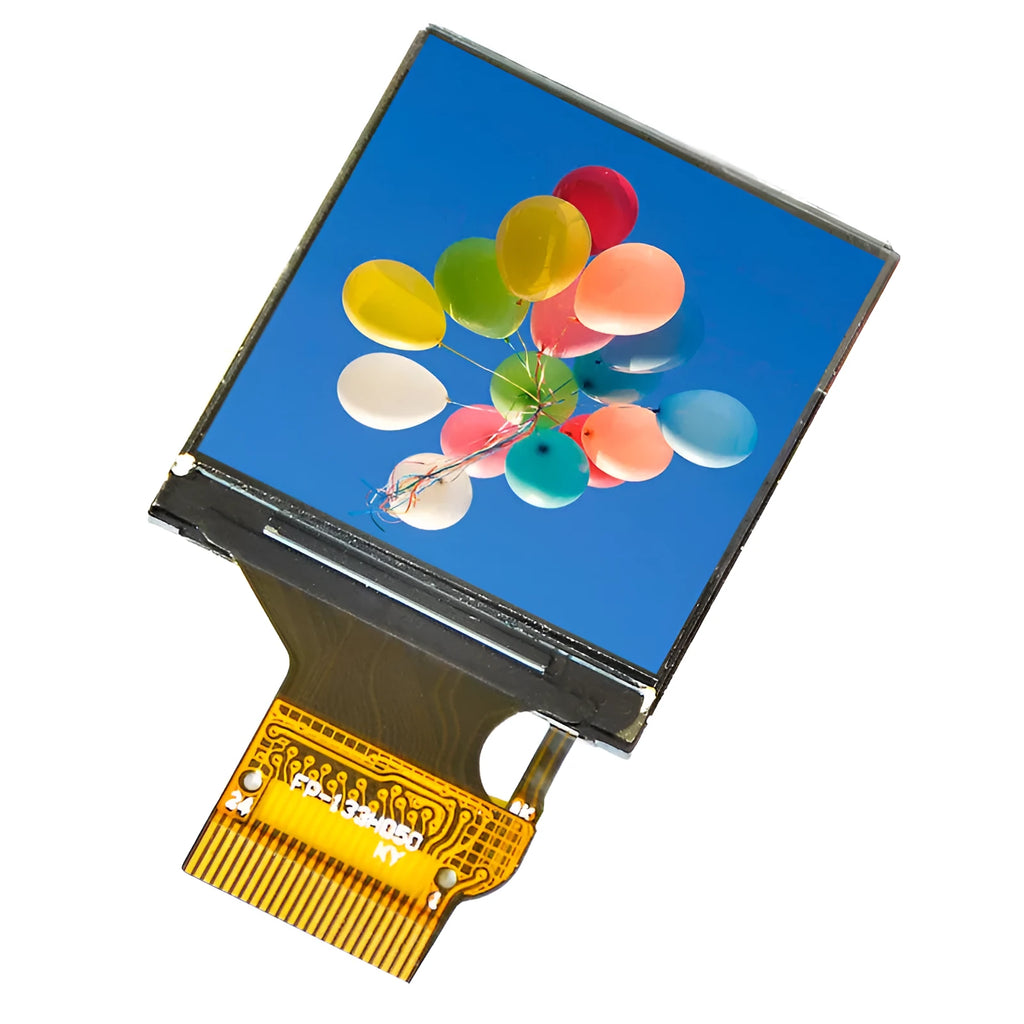

The display utilises an IPS (In-Plane Switching) LCD panel, which offers inherent advantages over standard TFT technology including wider viewing angles and improved colour reproduction. This material choice results in the more vivid colours mentioned in the specifications, providing better visual distinction between interface elements. The panel is housed in a compact frame that protects the display while maintaining the minimal 27.78x39.22mm external dimensions.

Size and Practical Fit

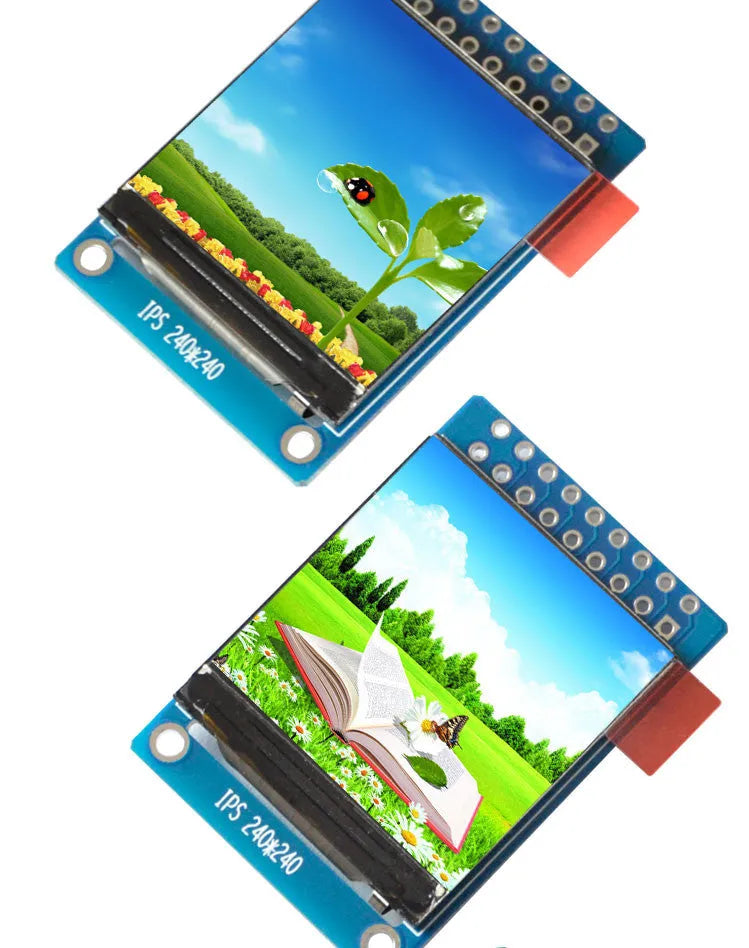

With a 1.3 inch diagonal measurement and square 240x240 resolution, this display provides sufficient pixel density for readable text and basic graphics. The 23.4x23.4mm active display area makes efficient use of the available space, while the adjustable display direction feature allows rotation to match different mounting orientations. This flexibility makes the module suitable for both portrait and landscape installations in projects where physical constraints dictate screen placement.

Uses and Placement

This display module serves multiple applications across educational, prototyping, and embedded system contexts. Its combination of compact dimensions and clear visual output makes it adaptable to various project requirements.

Event or Professional Use

In professional or event settings, this display could serve as a compact status monitor for equipment, a basic user interface for control systems, or an information panel in space-limited installations. The operating temperature range of -20°C to 70°C allows deployment in environments beyond typical indoor conditions, while the full viewing direction capability ensures readability from various angles during demonstrations or public viewing situations.

Everyday Home Use

For home electronics projects, this display is well-suited to Arduino or Raspberry Pi applications requiring visual feedback, such as weather stations, home automation interfaces, or gaming accessories. The dual interface options (8-bit parallel port and 4-wire SPI) provide compatibility with different microcontroller families, while the adjustable display direction accommodates various project enclosures and mounting positions commonly found in DIY electronics.

Benefits and Buying Value

This display module offers practical advantages for microcontroller enthusiasts and embedded developers seeking a balance between visual quality and physical compactness.

Reuse and Low Maintenance

The display's standard interfaces and common ST7789 driver chip support integration into multiple projects over time. The absence of moving parts contributes to reliable operation, while the specified temperature range allows use in various environments without special environmental controls. The 18-pin connection, while requiring separate pin handling, follows common display interface conventions that maintain compatibility with future projects.

Why Choose This Product

This 1.3 inch IPS display provides a noticeable colour quality improvement over standard TFT alternatives while maintaining compact dimensions suitable for space-constrained projects. The combination of 240x240 resolution, adjustable orientation, and dual interface options offers flexibility for different microcontroller platforms and mounting requirements. The clear specification of operating parameters, including the -20°C to 70°C temperature range, allows informed integration decisions based on project environmental conditions.
