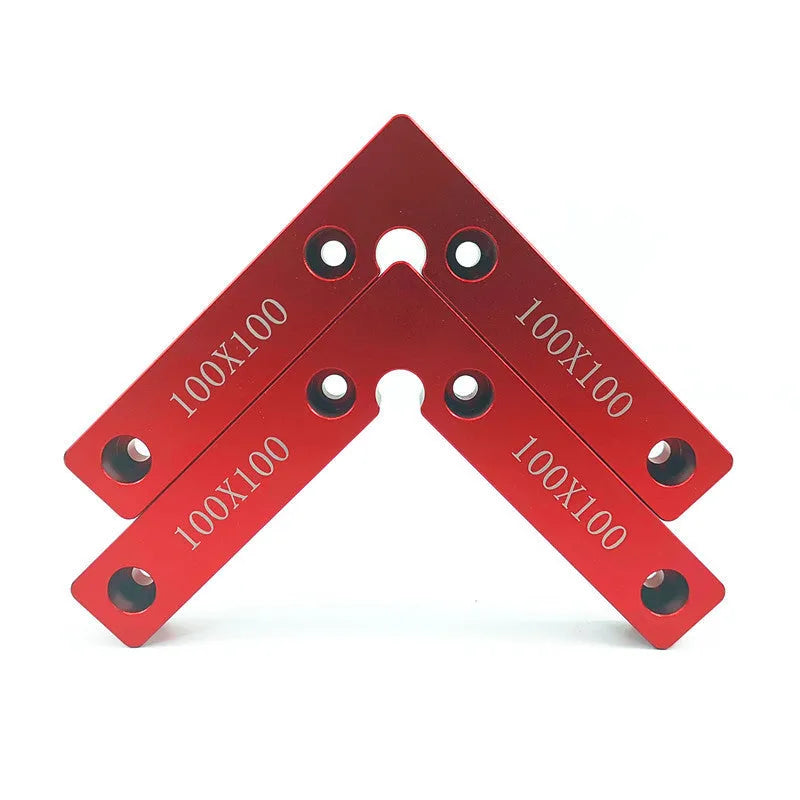

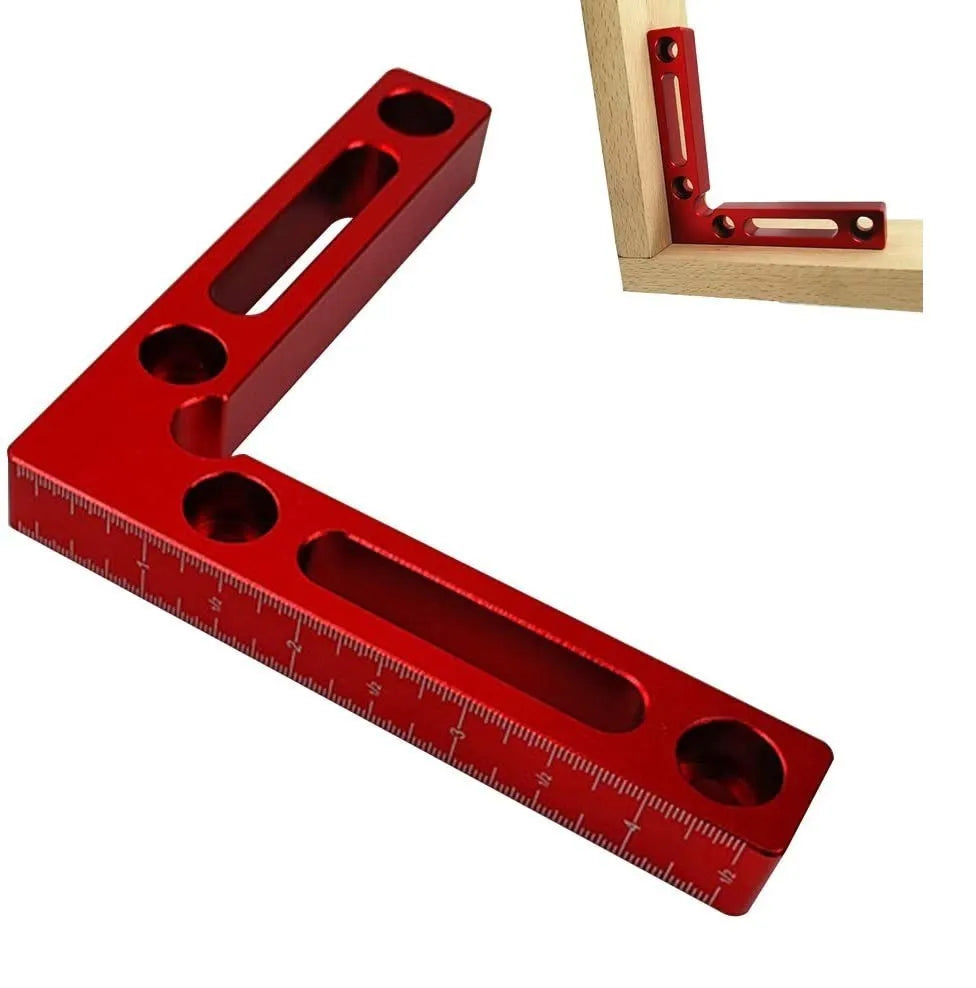

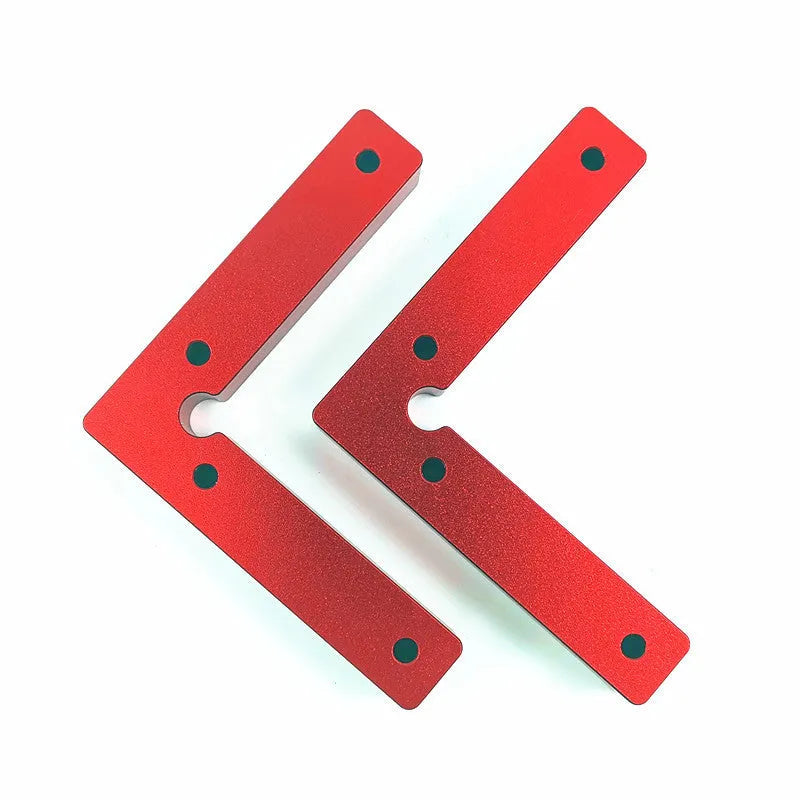

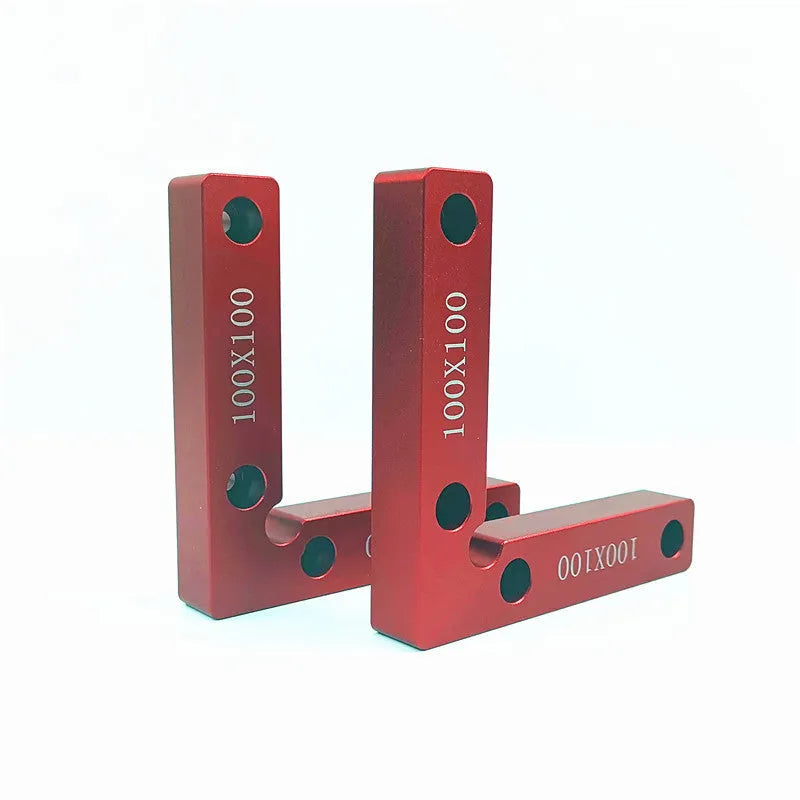

Aluminium Alloy Right Angle Positioning Block for Precise 90-Degree Woodworking Jigs

This right angle fixture positioning block provides woodworkers with a reliable, metal reference tool for establishing perfect perpendicular joints and cuts. Manufactured from aluminium alloy 6061, it delivers a stable and durable base for clamping workpieces at a consistent 90-degree angle, essential for box construction, frame assembly, and other projects requiring square corners. Its precision engineering and accurate scale eliminate guesswork, allowing for repeatable accuracy when used with jigsaws and other workshop tools. Available in two distinct size configurations, it offers flexibility for different project scales while maintaining the core function of a solid, reusable alignment jig.

Features and Construction

The block is designed as a fundamental workshop accessory, focusing on practical geometry and material strength to support accurate woodworking. Its value lies in its simplicity and the tangible difference a metal alignment tool makes over makeshift solutions.

Material and Build

The positioning block is constructed entirely from aluminium alloy 6061, a material widely used in machining for its favourable strength-to-weight ratio and resistance to warping. This choice of material ensures the fixture remains dimensionally stable under clamping pressure and during changes in workshop humidity, providing a more reliable reference point than wooden alternatives. The precision manufacturing mentioned in the source text translates to consistently machined right angles and smooth surfaces, which are critical for the block to function correctly as a measurement and alignment guide.

Size and Practical Fit

The core block dimensions are 40mm high, 130mm wide, and 210mm long, creating a substantial L-shaped profile. Users can select between two primary face dimensions: a 100x100mm right angle or a 120x120mm right angle. This choice allows woodworkers to match the fixture size to their common workpiece dimensions, ensuring the block provides adequate support and clamping surface. The 210mm length offers a useful contact area for longer workpieces, aiding stability during the clamping and cutting process.

Uses and Placement

As a dedicated woodworking jig, this block has clear applications in both professional workshops and serious hobbyist settings. Its role is to standardise a fundamental joinery angle, saving time and improving final product quality.

Event or Professional Use

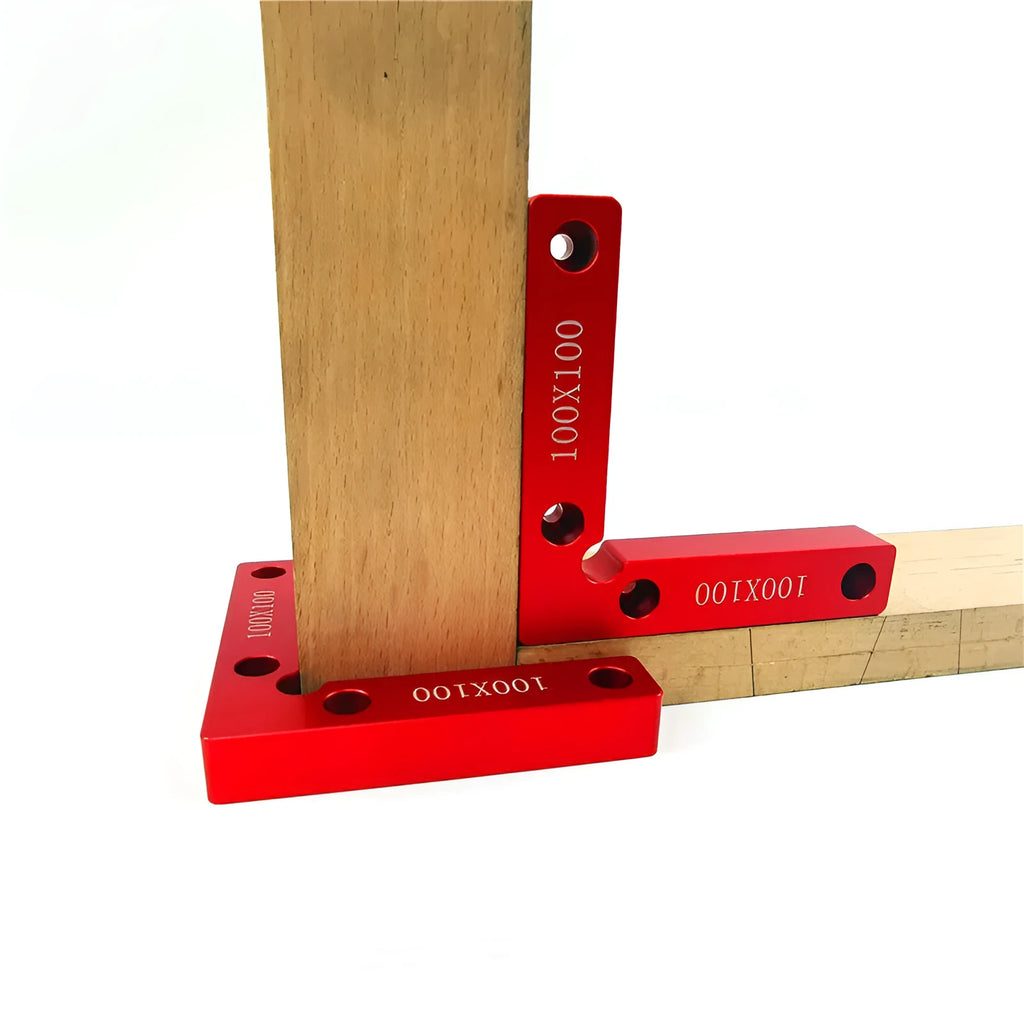

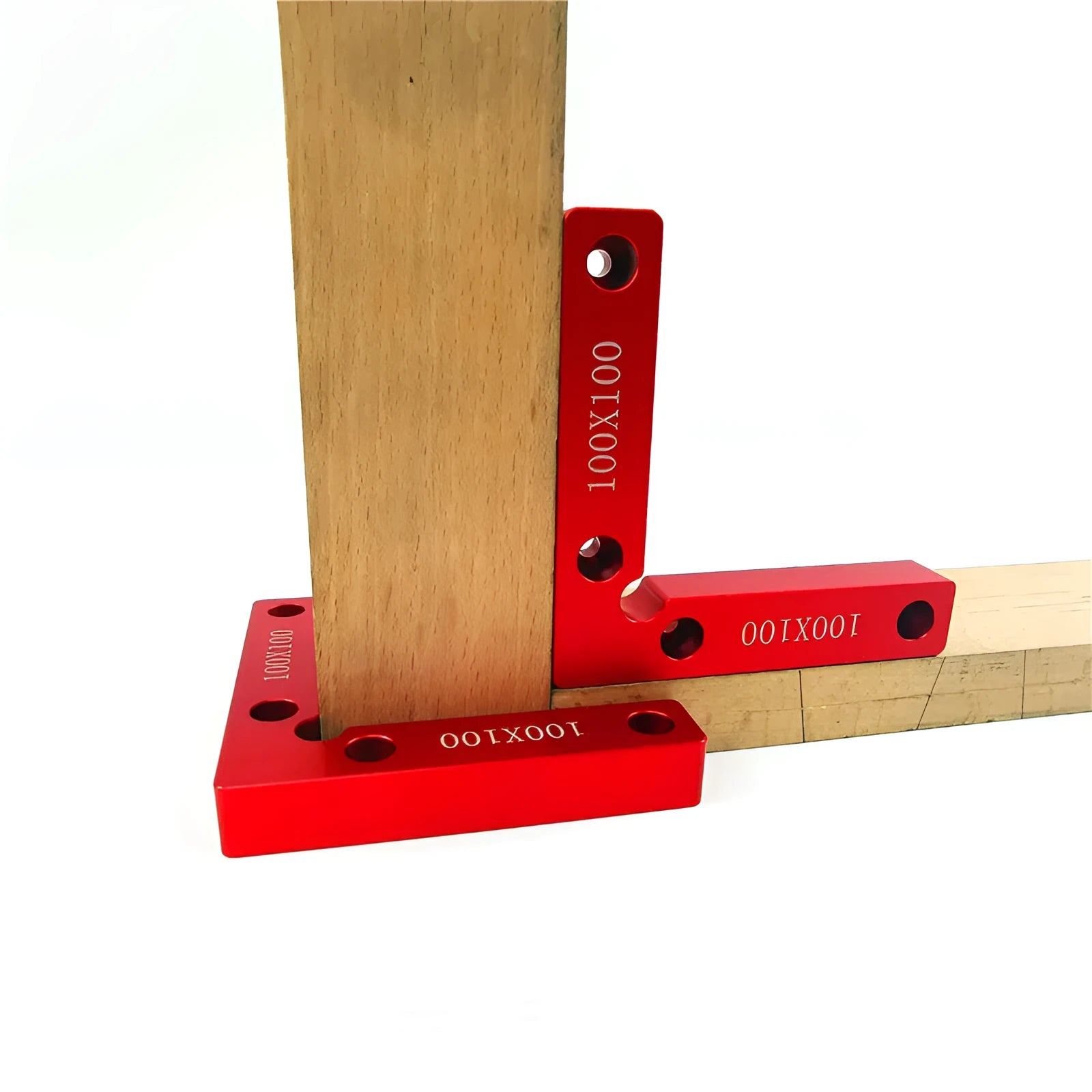

In a professional cabinetmaking or joinery shop, consistency and speed are paramount. This fixture allows for the rapid setup of repeated 90-degree cuts on a table saw, bandsaw, or when using a router. It can be integrated into a larger custom jig or used as a standalone reference for assembling drawers, cabinets, or picture frames. The aluminium construction withstands frequent use and the knocks of a busy workshop environment better than softer materials, making it a practical long-term tooling investment.

Everyday Home Use

For the home workshop enthusiast, this block brings a level of precision often missing from DIY projects. It is ideal for one-off projects like building a bookshelf, constructing planter boxes, or creating simple furniture where square corners are crucial for structural integrity and appearance. Its convenient operation, as noted in the source, means it is straightforward to use without a complex setup, making accurate joinery more accessible to those without years of experience.

Benefits and Buying Value

The value of this product stems from its ability to improve results and reduce material waste through accurate alignment. It is a single-purpose tool that performs its function reliably.

Reuse and Low Maintenance

Unlike disposable guides, this metal fixture is built for reuse across countless projects. Aluminium alloy requires minimal maintenance; keeping it clean and free of sawdust is typically all that's needed. There are no moving parts to wear out or adjustments that can drift, ensuring the 90-degree angle remains true over time. This longevity turns it from a project consumable into a permanent part of a woodworker's toolkit.

Why Choose This Product

This positioning block addresses a specific need: achieving a verifiably perfect right angle. Choosing it over a homemade wooden square offers greater durability and inherent accuracy from its machined metal construction. The availability of two sizes provides an immediate, source-supported choice to suit different working styles and common project dimensions. Its primary benefit is delivering a factory-accurate reference angle directly into the user's hands, supporting quality assurance in the workshop as highlighted in the source text.
