Single Power Supply 10-24V Super Dynamic Bass Boost Front Stage Board with FR-4 Fibreglass Construction

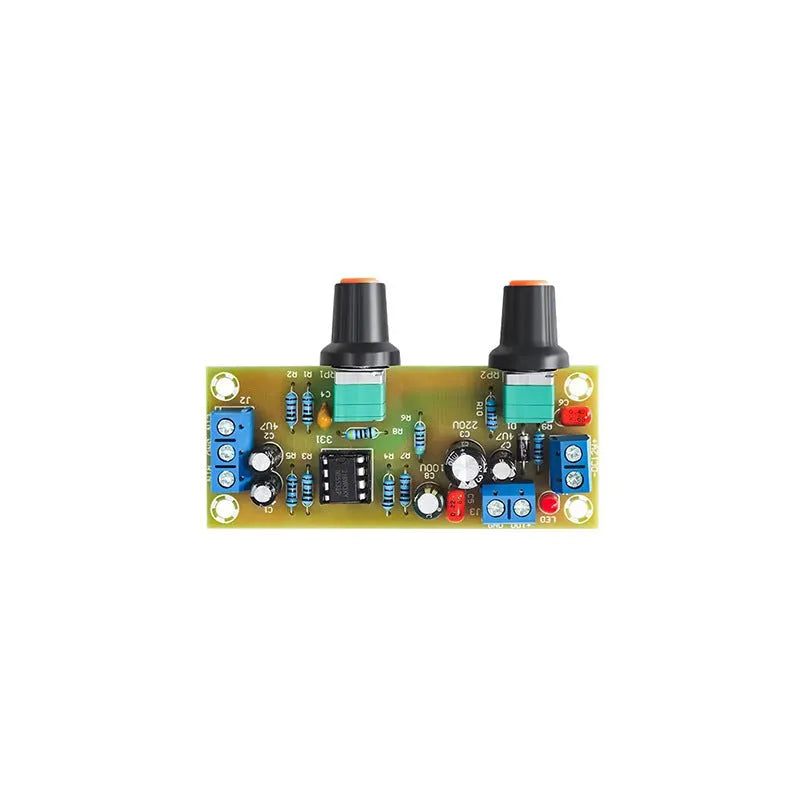

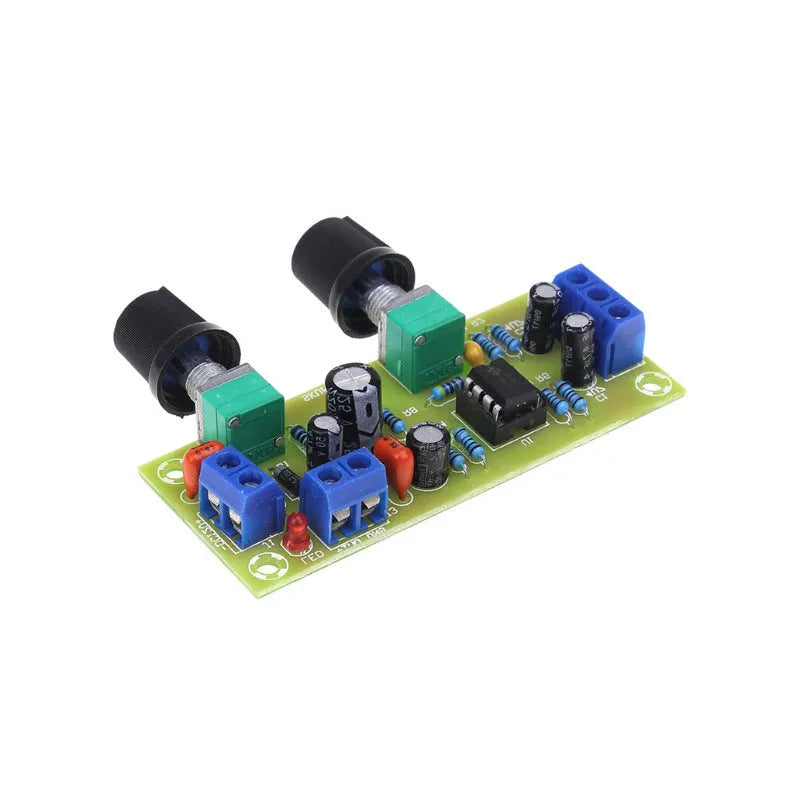

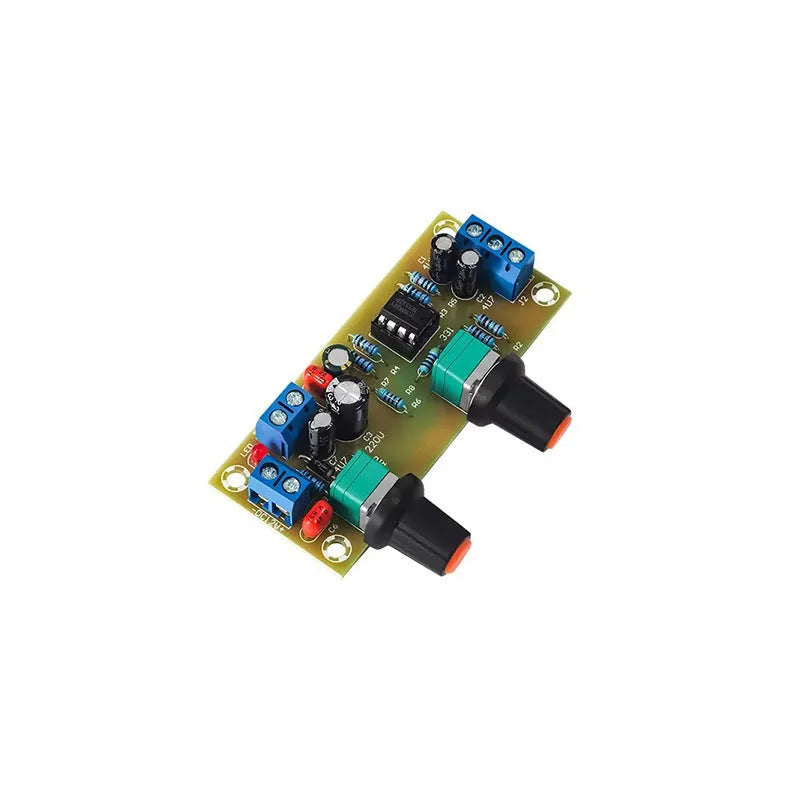

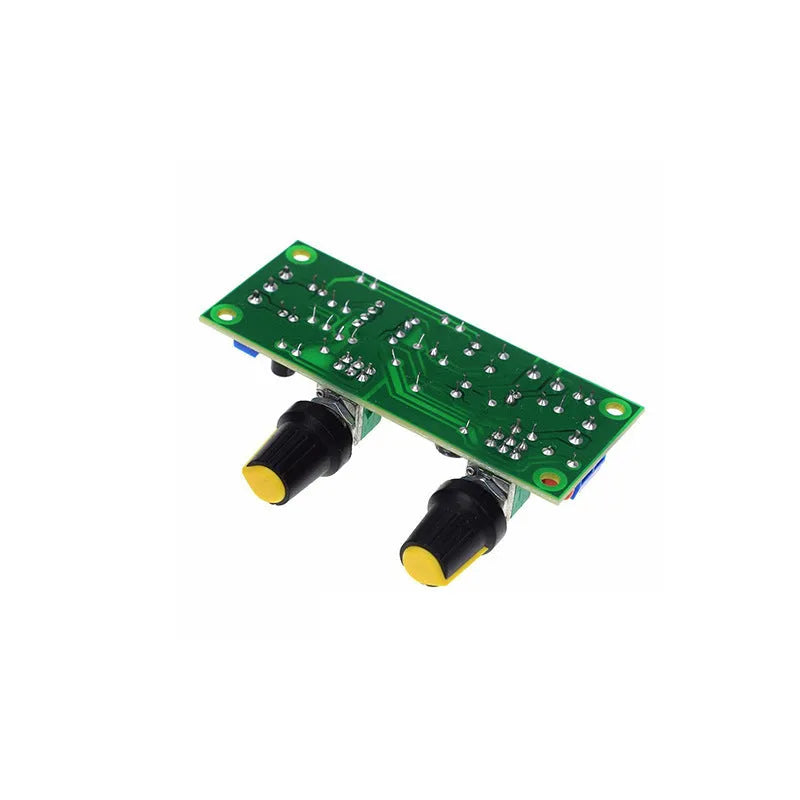

This front stage board provides bass enhancement functionality for audio systems requiring a 10-24V DC single power supply solution. With frequency adjustment capabilities spanning 22Hz to 300Hz, it offers control over bass response in various audio configurations. The board accepts both mono and dual channel audio inputs while delivering mono output, making it adaptable to different system setups. Constructed using super hardness FR-4 fibreglass material, the printed circuit board measures 78 x 32mm with 1.6mm thickness, providing a stable platform for electronic components while maintaining a 30g net weight.

Features and Construction

The board's design centres around practical audio enhancement functionality with straightforward implementation requirements. Its specifications cater to installation in various audio equipment where bass control is needed without complex power requirements.

Material and Build

Using super hardness FR-4 fibreglass as the PCB material provides structural integrity for component mounting and circuit stability. This material choice offers resistance to warping and maintains dimensional stability during use. The 1.6mm thickness contributes to the board's rigidity while keeping weight to just 30g, making it suitable for installations where component weight matters.

Size and Practical Fit

The 78 x 32mm PCB dimensions create a compact footprint that fits within various equipment enclosures. Mounting is facilitated by plate fixing holes spaced 70 x 24mm apart with 3.2mm diameter, allowing secure attachment using standard hardware. Potentiometer shaft centres are positioned 32.5mm apart for control adjustment access. These spacing measurements provide installation flexibility while maintaining component accessibility.

Uses and Placement

The board's specifications support implementation in different audio enhancement scenarios where bass control improves sound quality. Its power requirements and signal handling capabilities make it suitable for integration into existing systems.

Event or Professional Use

In professional audio setups, the 22Hz-300Hz frequency range allows technicians to adjust bass response for different venue acoustics or programme material. The mono output from mono or dual channel input flexibility supports various signal routing configurations found in live sound or studio environments. The 10-24V DC power supply range accommodates different power system voltages commonly available in professional equipment racks.

Everyday Home Use

For home audio systems, the board can enhance bass performance in car audio installations, home theatre setups, or custom speaker projects. The single power supply requirement simplifies integration with existing power sources, while the compact 78 x 32mm dimensions facilitate installation in limited spaces. Bass adjustment capabilities allow users to tailor sound to personal preferences or room acoustics.

Benefits and Buying Value

The board's design prioritises straightforward implementation with measurable performance specifications. Its construction and specifications provide practical advantages for audio enhancement projects.

Reuse and Low Maintenance

The FR-4 fibreglass PCB material offers durability for long-term use without degradation concerns. Standard mounting hole spacing and potentiometer shaft positioning facilitate replacement or maintenance access if required. The board's design focuses on reliable operation without complex maintenance needs once properly installed and configured.

Why Choose This Product

This front stage board provides specific bass enhancement functionality with clearly documented specifications including power requirements, frequency range, and physical dimensions. The super hardness FR-4 fibreglass construction offers material advantages for circuit stability, while the 10-24V DC power supply range accommodates various voltage sources. Complete mounting specifications including hole spacing and diameters support straightforward installation planning.
