V2 Parallel Charging Board: Charge Up To Four 2-8S RC Lithium Batteries Simultaneously

Managing multiple RC vehicle batteries can be a time-consuming process of charging each pack individually. The V2 Parallel Charging Board is designed as an expansion adapter for your existing balance charger, providing a dedicated solution for this frequent task. It allows you to connect and charge up to four lithium polymer (LiPo) or lithium-ion battery packs at the same time, provided they share the same configuration. This method consolidates capacity, which can lead to shorter overall charging durations by enabling higher effective charge rates and reducing the number of separate balance cycles required from four to just one.

Features and Construction

The board is engineered for reliable performance and safety in a multi-battery charging environment. Its construction focuses on robust current handling and protective measures to manage the demands of parallel charging setups common in RC hobbies.

Material and Build

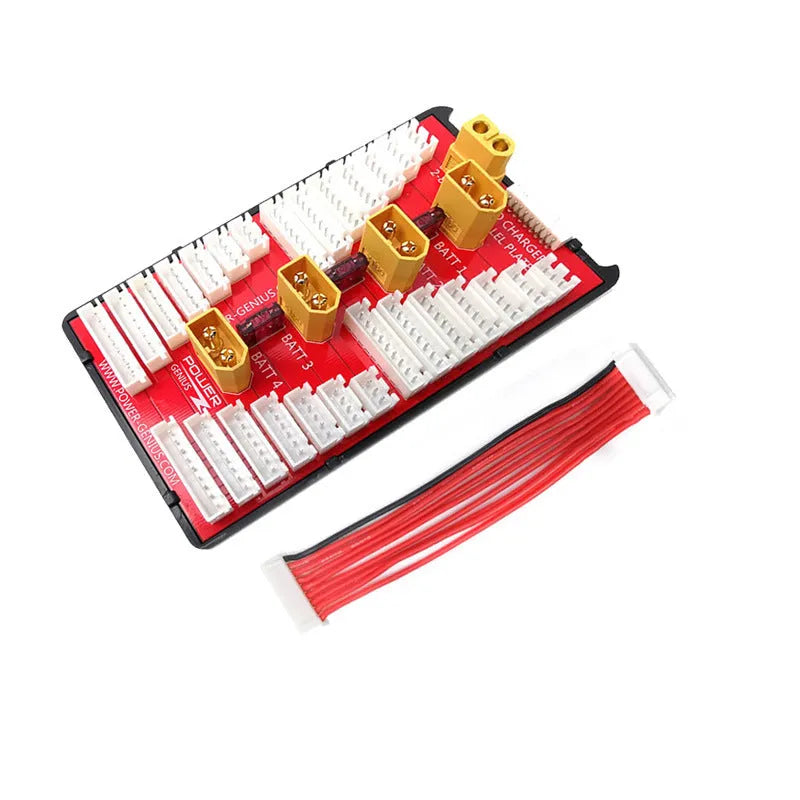

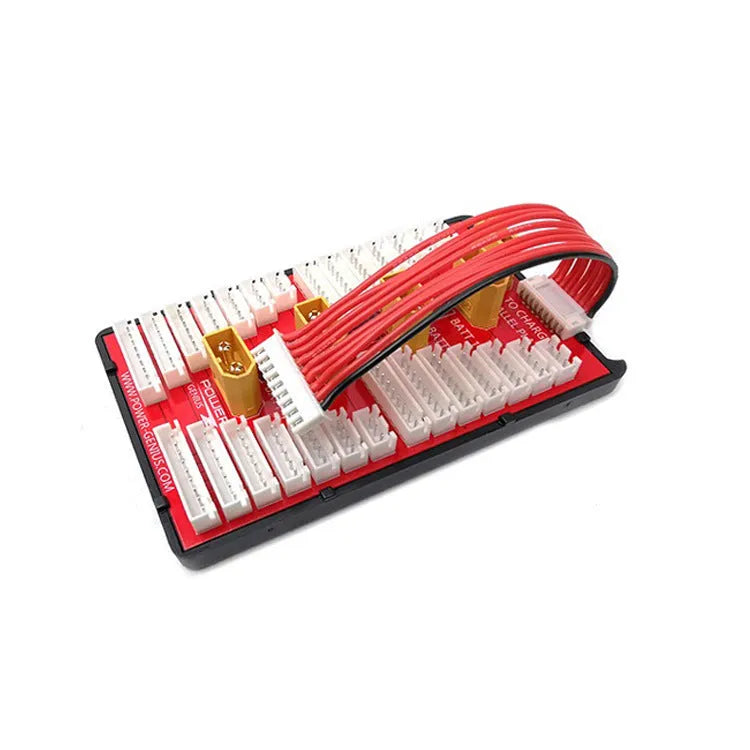

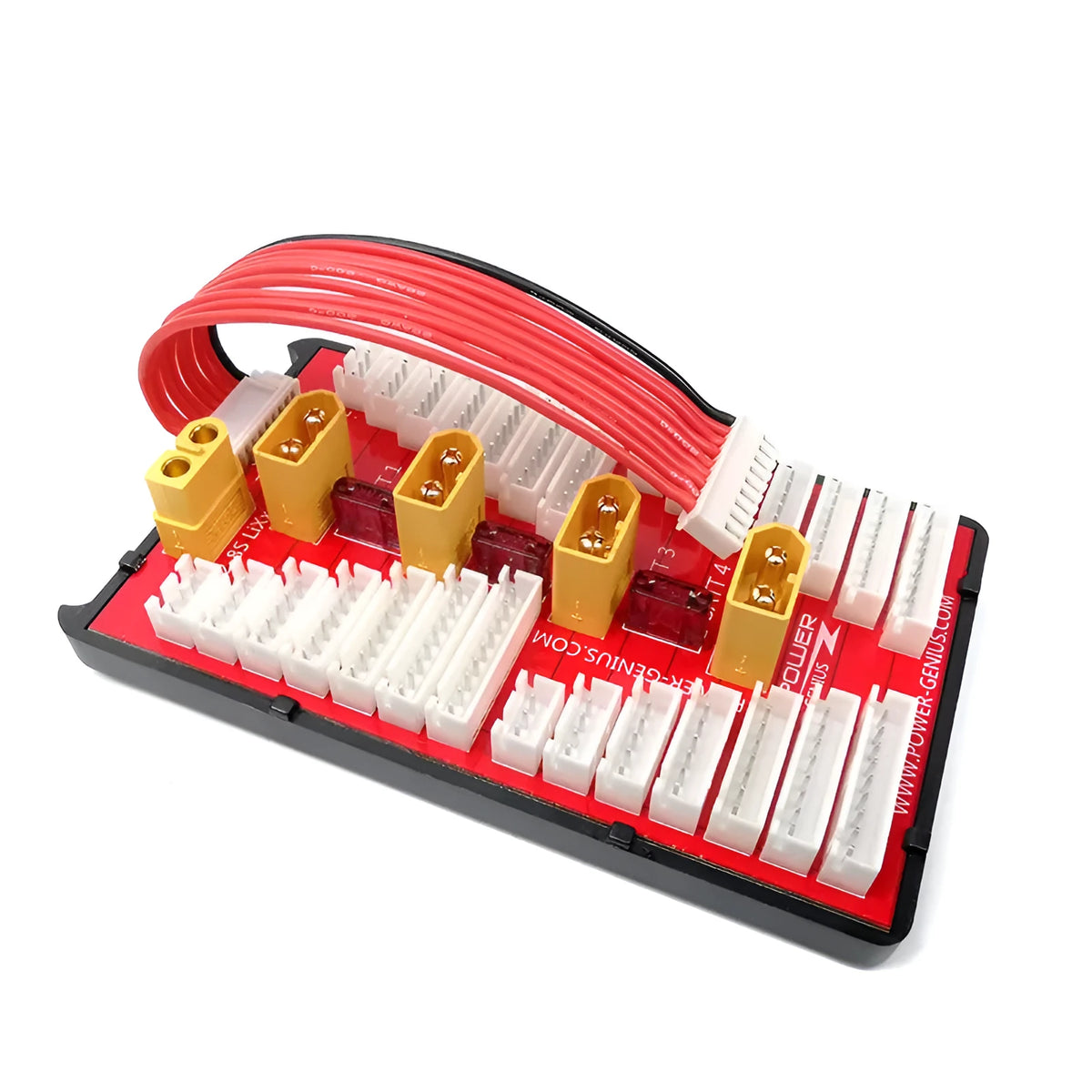

The core of the board is a printed circuit board (PCB) manufactured with thicker copper foil. This design supports the high currents involved in charging multiple packs, with a specified capability for charging currents up to 35A. All electrical connectors featured on the board are high-quality gold-plated types, which help maintain a stable and low-resistance connection. The output lines for the balance ports are made from flexible and durable 18AWG multi-strand silicone wire.

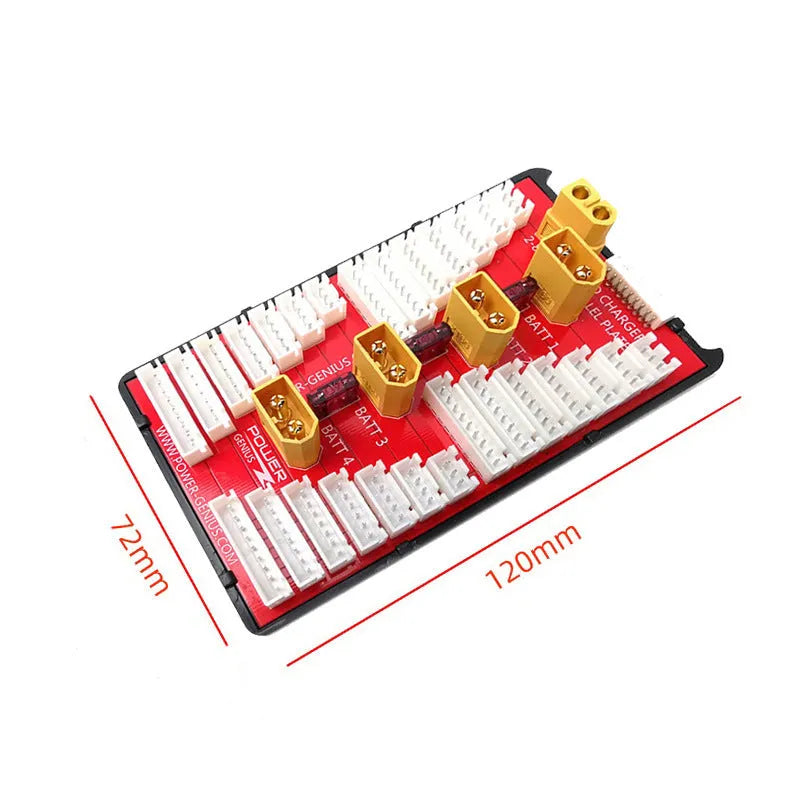

Size and Practical Fit

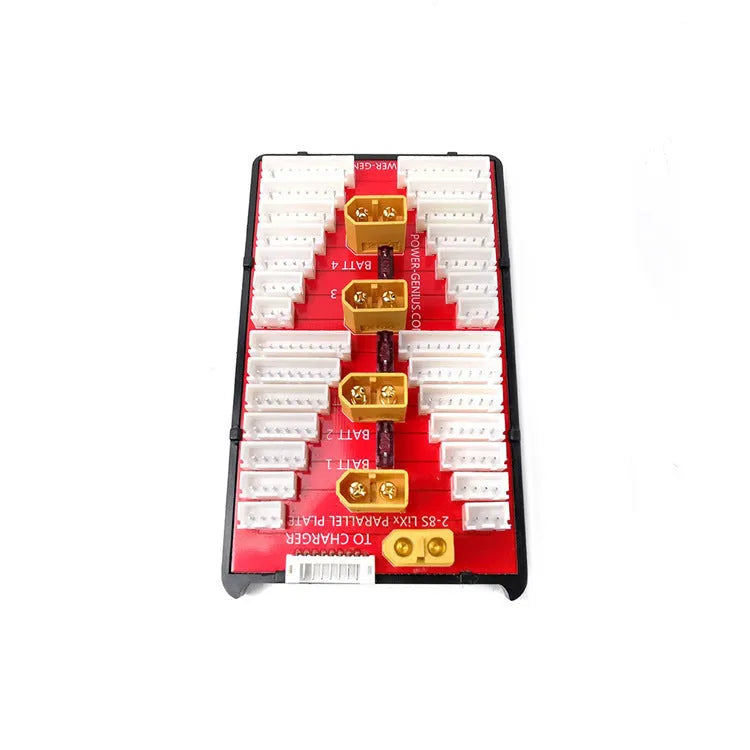

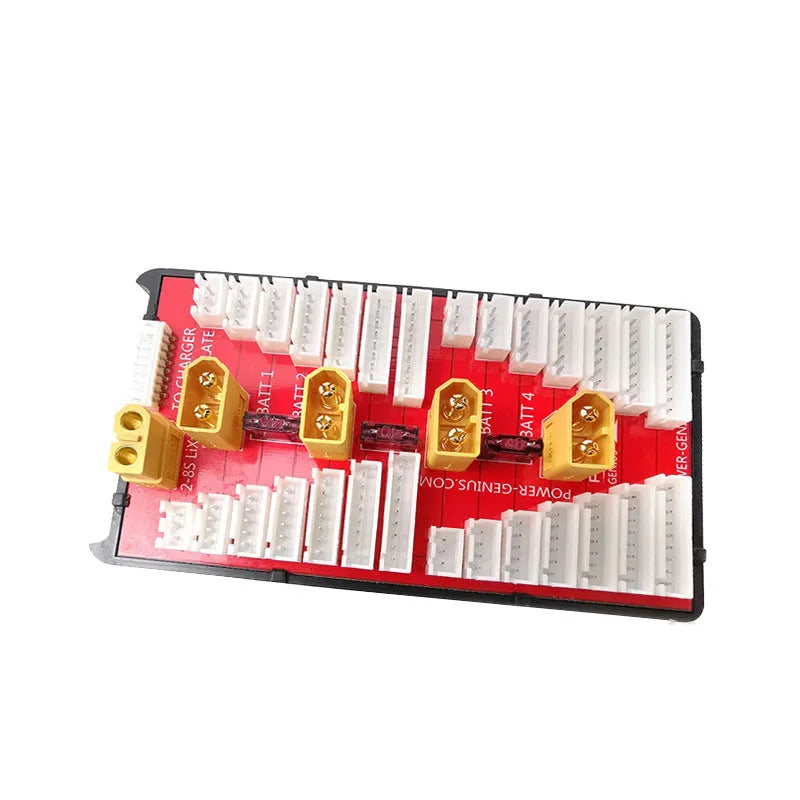

The board provides four independent charging ports, each capable of accepting a 2-8S battery pack. A critical safety feature is the inclusion of a 40A fuse positioned between any two groups of batteries. This fuse acts as a safeguard, designed to blow and break the circuit if an excessive voltage difference between connected batteries occurs, thereby helping to prevent damage to the board or the batteries themselves. For added safety during storage or when ports are unused, the package includes silicone caps designed to fit over the T-plug connectors.

Uses and Placement

This adapter board is intended for use with compatible balance chargers in scenarios where multiple batteries need to be prepared. It suits both organised event days and regular home maintenance routines for RC enthusiasts.

Event or Professional Use

For racers or pilots attending a full day of events, the ability to charge four matched battery packs from a single charger outlet is a significant logistical advantage. It reduces the number of chargers needed on site and simplifies power management. By connecting packs in parallel, their capacities add together (e.g., two 4S 5000mAh packs become a virtual 4S 10000mAh pack), which can allow for faster effective charging at a 1C rate, helping to minimise downtime between sessions.

Everyday Home Use

For the hobbyist maintaining a fleet of vehicles, this board turns a lengthy sequential charging process into a single, more efficient operation. It is particularly useful for charging sets of batteries used in the same model or for preparing all batteries after a day of use. The consolidated charging process means the charger only needs to complete one balance cycle for the entire parallel set, rather than one for each individual pack.

Benefits and Buying Value

The value of this parallel charging board lies in its time-saving functionality and the built-in protections designed for its specific use case. It is a focused tool that enhances an existing charger's capability.

Reuse and Low Maintenance

As an adapter, this board integrates with your current charger setup. Its solid-state construction with protective fuses and quality connectors is designed for repeated use over time with minimal required maintenance beyond basic care like keeping connectors clean and using the provided safety caps.

Why Choose This Product

This V2 board offers a practical solution for a common RC hobbyist challenge. Its specified support for currents up to 35A, inclusion of inter-battery fuses, and use of gold-plated connectors address key concerns for safe and efficient parallel charging. It provides a way to expand charger functionality without needing to invest in an entirely new, multi-port charging system.
