Industrial Steel Lifting Pulley Block for General Heavy-Duty Lifting and Cargo Securing
This robust lifting pulley, constructed from forged A3 steel, serves as a fundamental tool for material handling across various industrial and construction environments. Designed for general lifting, cargo securing, power generation support, and construction site logistics, it offers a practical mechanical advantage for moving loads that are otherwise difficult to manoeuvre manually. Its core purpose is to provide a reliable, strong point for redirecting force via wire rope or slings, helping to organise workspaces and manage heavy items. It is crucial to note that this product's application is strictly limited to general lifting tasks and it is not certified or designed for overhead lifting operations where failure could result in catastrophic injury.
Features and Construction
The pulley's functionality is built upon a foundation of durable materials and considered engineering features aimed at safety and longevity in demanding settings.
Material and Build
The primary component is forged low-carbon alloy steel (A3 steel), subjected to a high-temperature quenching process. This treatment aligns the internal grain structure of the metal, significantly enhancing its overall strength and load-bearing capability to withstand the stresses of lifting heavy weights. Following forging, the entire unit receives an overall powder coating and additional heat treatment. This combined surface finishing process is implemented to substantially improve the pulley's resistance to corrosion from moisture or chemical exposure and its ability to withstand abrasive wear from repeated contact with ropes or cables.
Size and Practical Fit

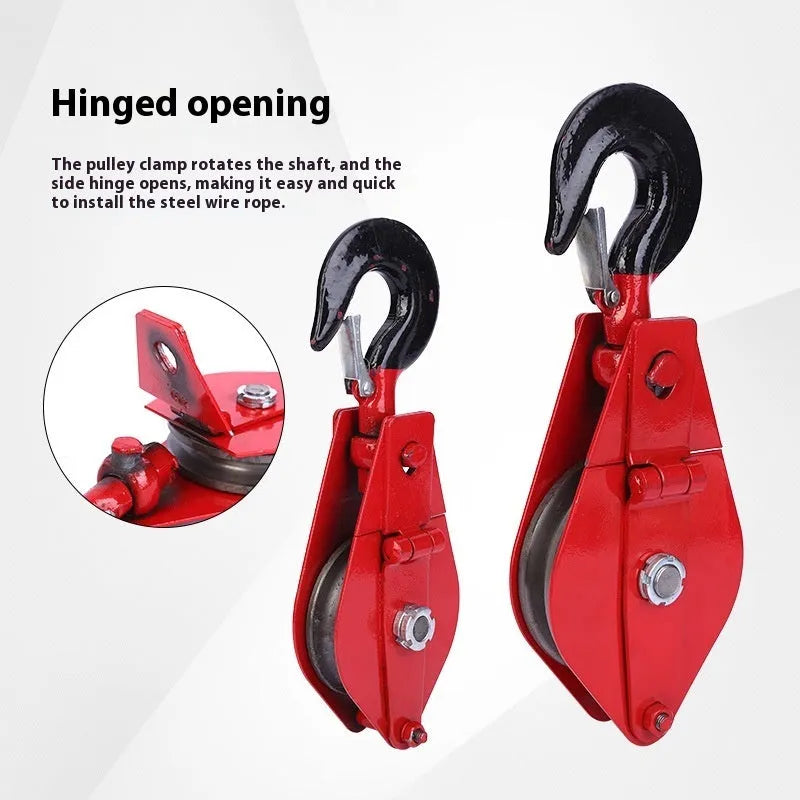

The product is offered in multiple configurations to match different task requirements. Key variables include the model type—such as ring steel wheel, hook steel wheel, or forging hook designs—and the critical specification of maximum load capacity. Capacities range from lighter duties at 100kg or 200kg up to heavier applications at 3000kg or 5000kg, allowing selection based on the specific weights involved in your operations. The hook itself features a large opening design, a practical aspect that facilitates quicker and easier threading and installation of slings or rope, saving time during rigging setup.
Uses and Placement
This tool finds its role in scenarios where controlled, powered movement of mass is required, acting as a dependable connecting point or direction-changer for lifting forces.
Event or Professional Use
In professional industrial contexts like factory floors, harbour dockyards, and large-scale construction engineering projects, this pulley is employed for hoisting machinery components, securing cargo containers, or positioning building materials. Its forged steel build and enhanced corrosion resistance make it suitable for both indoor workshops and more exposed outdoor environments often encountered in these sectors. The explicit manufacturer guidance is that it must only be used for general lifting within these contexts, not for suspending loads overhead where people might work or pass underneath.
Everyday Home Use
While primarily an industrial product, it may be used in serious domestic or small-scale workshop settings for heavy-duty tasks such as lifting automotive engines, moving large timber or steel beams in a personal workshop, or for setting up complex rigging in a barn or storage facility. Users must strictly adhere to the load ratings and application limitations, ensuring the selected model's capacity far exceeds the weight of any object being lifted to maintain a significant safety margin.
Benefits and Buying Value
The value of this pulley lies in its focused design for strength, safety, and suitability for a defined range of demanding tasks.
Reuse and Low Maintenance
The corrosion and wear-resistant treatments applied to the steel are intended to prolong the functional life of the pulley, allowing for repeated reuse across multiple projects without significant degradation. This durability translates to a lower long-term cost per use and less frequent need for replacement compared to untreated or lower-grade equipment. The simple mechanical design, with few moving parts beyond the sheave wheel, also contributes to low maintenance needs, primarily requiring periodic inspection for damage and wear.
Why Choose This Product
Choosing this lifting pulley centres on its verified construction credentials—forged and quenched steel for core strength—and its specific safety feature: the hook's safety latch. This latch is a critical guard against accidental disengagement, providing an extra layer of security during lifting operations. Furthermore, the availability of different models (ring or hook type) and a wide spectrum of load capacities (from 100kg to 5000kg) allows for precise matching to your specific lifting requirements, ensuring you are not under- or over-specified for the job at hand.
