PWM DC motor governor for 4.5V-35V applications with 5A current capacity and compact 30mm design

This DC motor governor provides precise speed regulation for direct current motors in various DIY, robotics, and small-scale industrial applications. Operating on a pulse-width modulation (PWM) principle, it allows smooth adjustment of motor RPM without the complexity of digital programming interfaces. The unit supports motors requiring between 4.5V and 35V DC input with a maximum current draw of 5A, making it suitable for numerous small to medium-sized DC motor projects. Its 90W maximum output power covers a broad range of applications while maintaining compact dimensions that facilitate installation in space-constrained environments.

Features and Construction

The governor combines electronic regulation with straightforward manual control through its rotary potentiometer interface. This construction approach provides reliable speed adjustment without requiring additional control circuits or complex wiring setups.

Material and Build

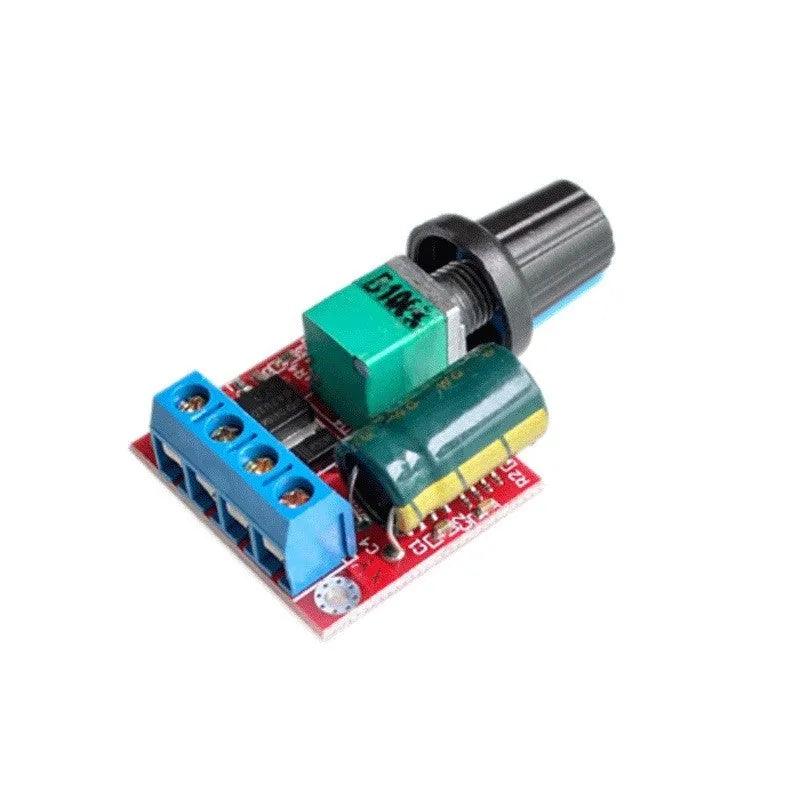

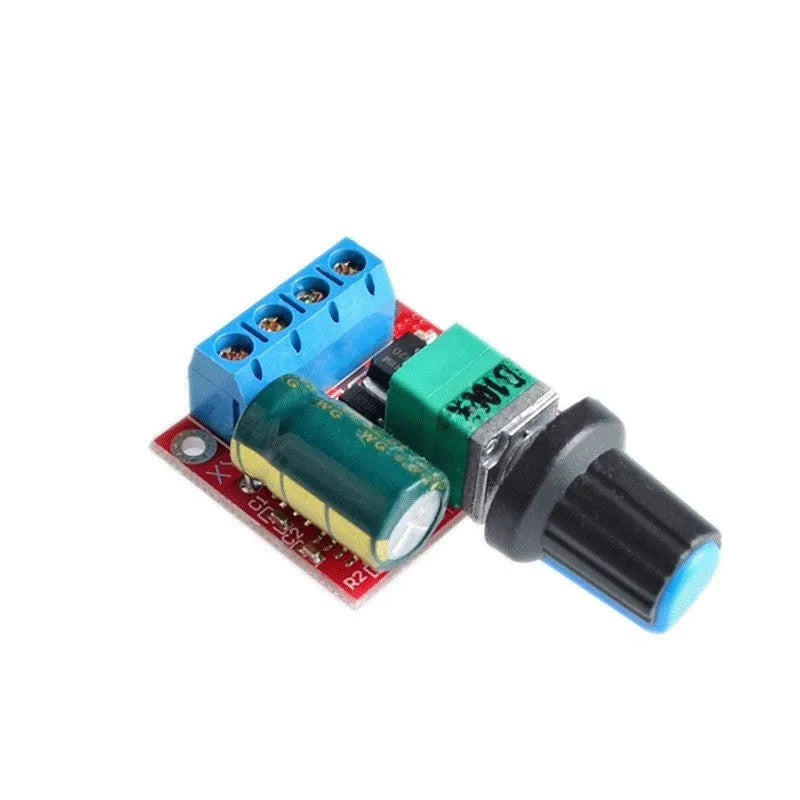

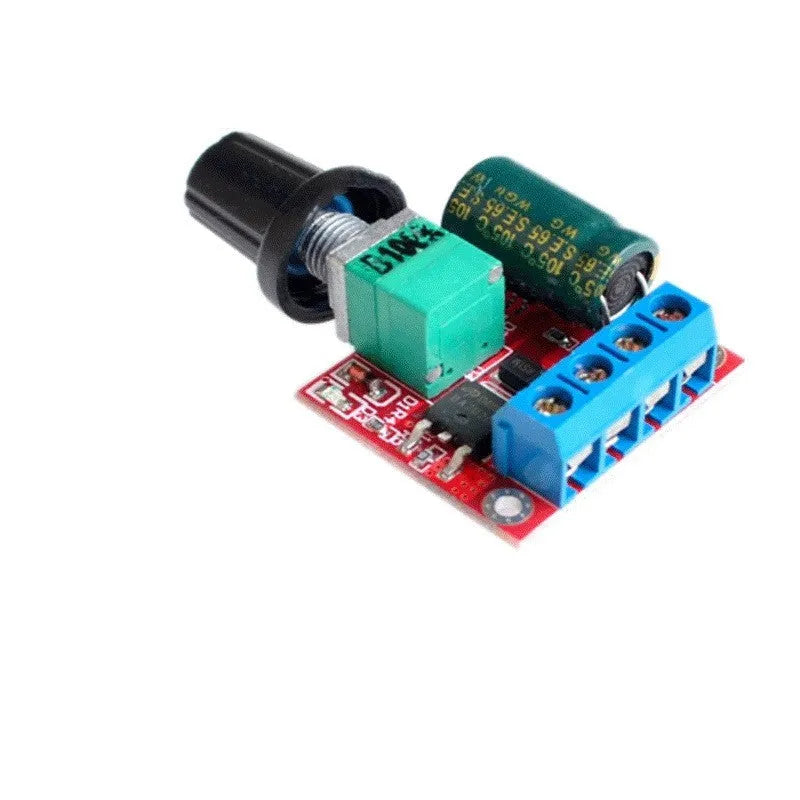

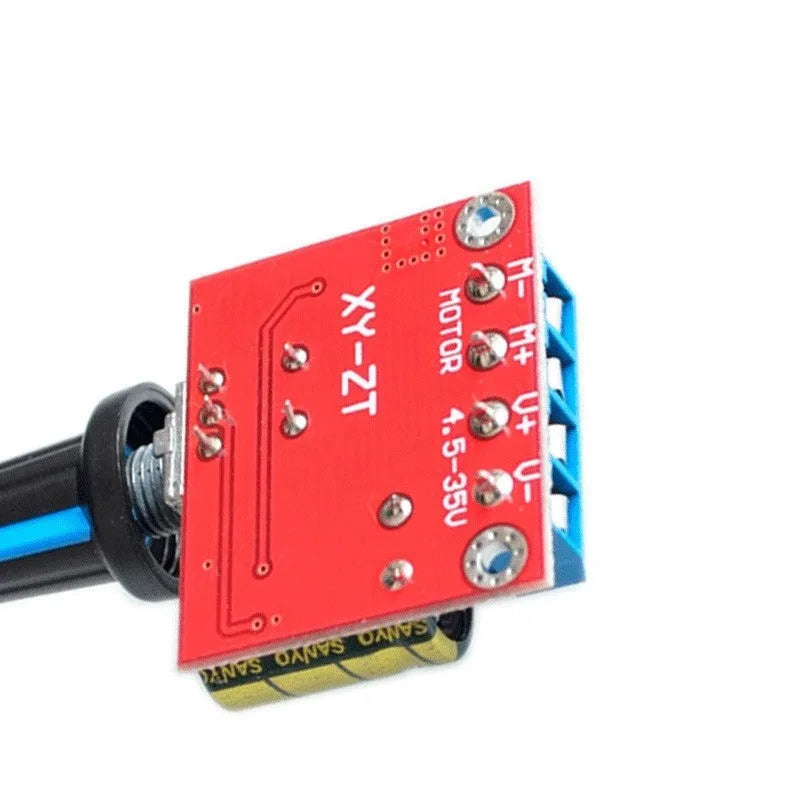

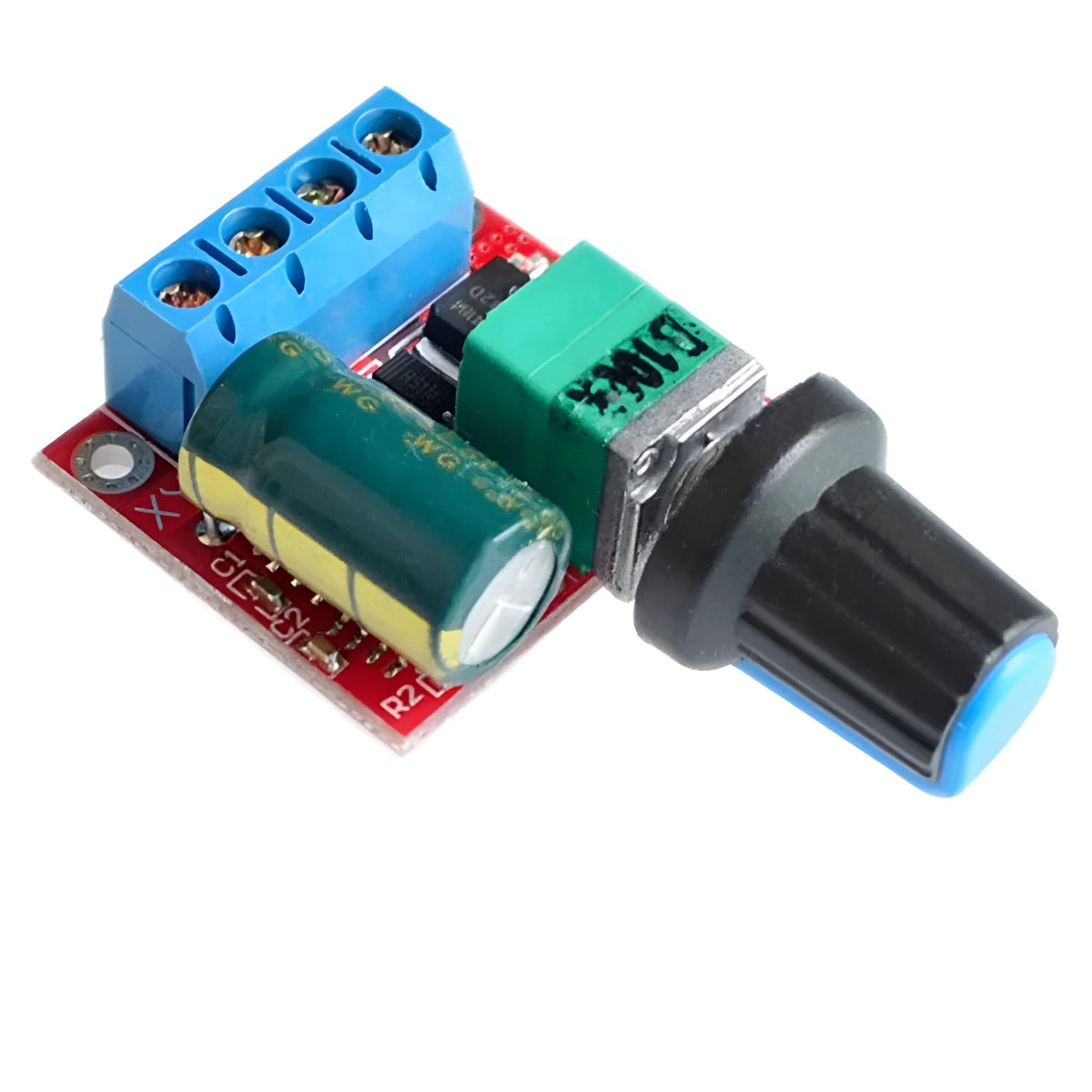

The governor comprises a printed circuit board populated with electronic components for PWM signal generation, filtering, and power regulation. A rotary potentiometer with external knob serves as the user interface for speed adjustment, allowing linear control of the PWM duty cycle. Terminal connections provide secure points for attaching DC power input and motor output cables without soldering in many applications.

Size and Practical Fit

With dimensions of 30mm in length, 26mm in width, and 14mm in height (excluding the potentiometer knob), the governor occupies minimal space in project enclosures or machinery housings. This compact footprint makes it particularly suitable for applications where available space is limited, such as small robotics projects, model vehicles, or integrated mechanical systems. The unit's low 7μA standby current ensures minimal power draw when not actively controlling a motor.

Uses and Placement

The governor's specifications make it appropriate for various speed control applications requiring manual adjustment rather than automated or computer-controlled systems.

Event or Professional Use

In professional or exhibition settings, this governor can control display mechanisms, rotating signs, or demonstration equipment requiring adjustable-speed DC motor operation. The 20kHz PWM frequency reduces audible motor noise, which is advantageous in quiet environments like galleries, presentations, or retail displays. The unit's ability to handle up to 5A current makes it suitable for larger display mechanisms that standard hobbyist controllers might not support.

Everyday Home Use

For home workshops and DIY projects, this governor offers speed control for tools, ventilation fans, or hobbyist equipment powered by DC motors. The straightforward potentiometer interface allows immediate adjustment without technical expertise, while the included switch function provides basic forward/stop control. Home users appreciate the governor's compatibility with common DC power supplies and its ability to work with motors across a wide voltage range from small 5V units to larger 24V or 35V motors.

Benefits and Buying Value

The governor provides practical advantages through its combination of operating range, control precision, and physical characteristics.

Reuse and Low Maintenance

This governor supports repeated use across different projects due to its broad 4.5V-35V operating range and 5A current capacity. Its solid-state design without mechanical contacts means it experiences minimal wear during normal operation, requiring no periodic maintenance beyond ensuring clean electrical connections. The unit's compatibility with various DC motor types increases its utility over time as users acquire additional motors for different applications.

Why Choose This Product

This governor stands out for its combination of a wide operating voltage range (4.5V-35V) with substantial current capacity (5A) in a compact physical package. Many comparable controllers either support lower voltages, handle less current, or occupy significantly more space. The 20kHz PWM frequency provides smoother motor operation with reduced electrical noise compared to lower-frequency controllers, while the simple potentiometer interface ensures immediate usability without programming knowledge or additional equipment.
