Car Battery Voltage Tester Diagnostic Device with 2.8 Inch Colour Screen and 1m Alligator Clips

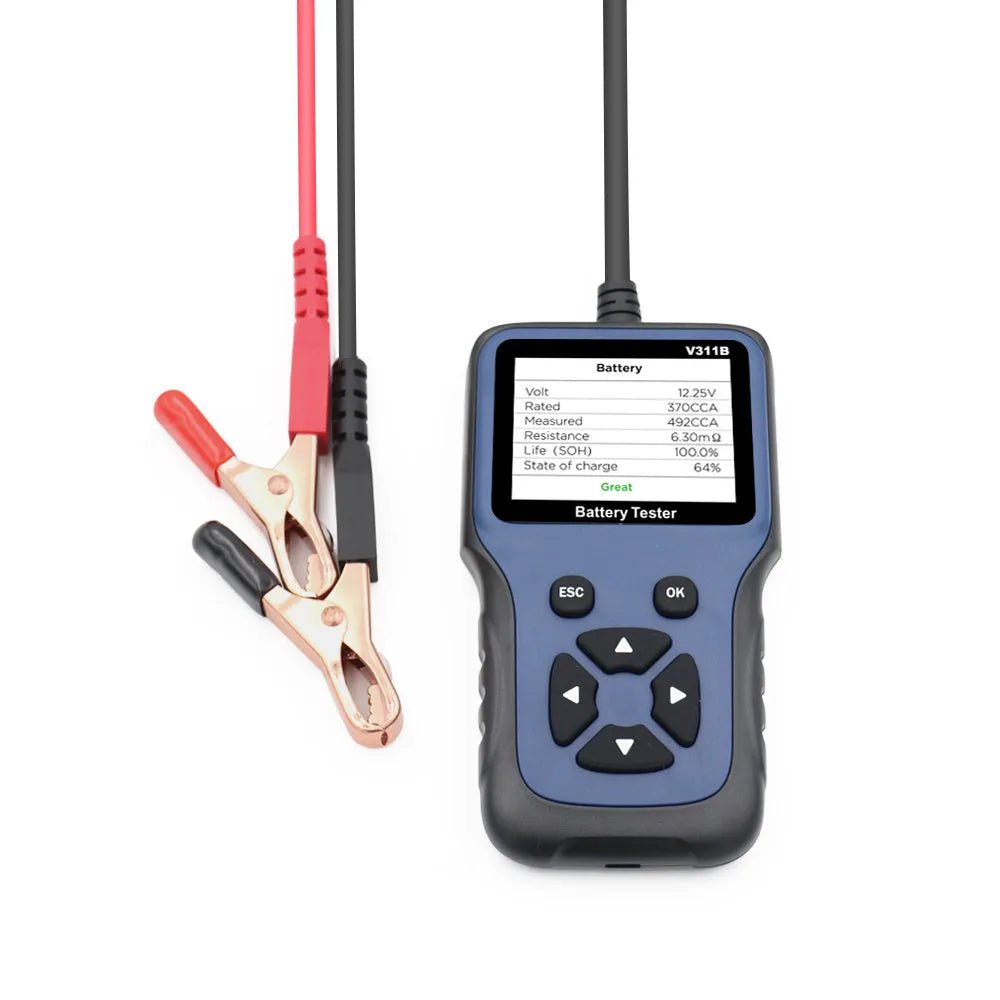

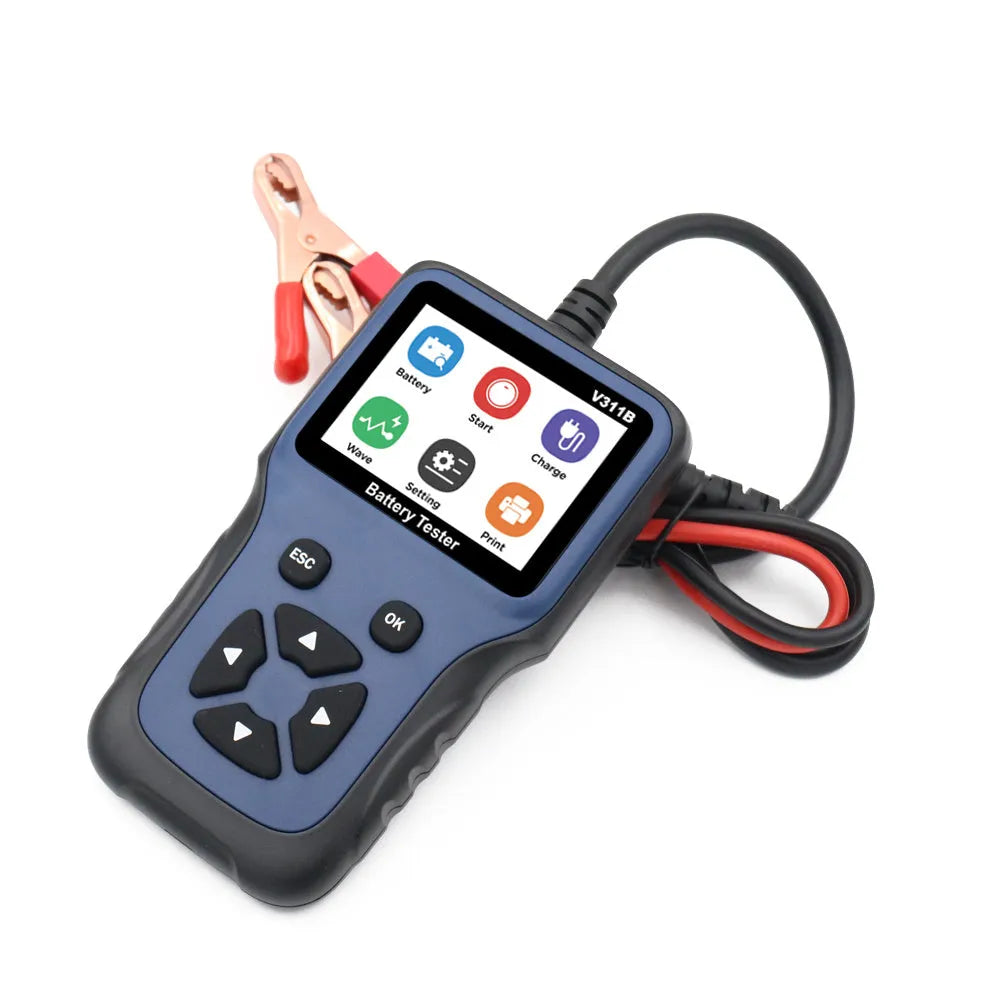

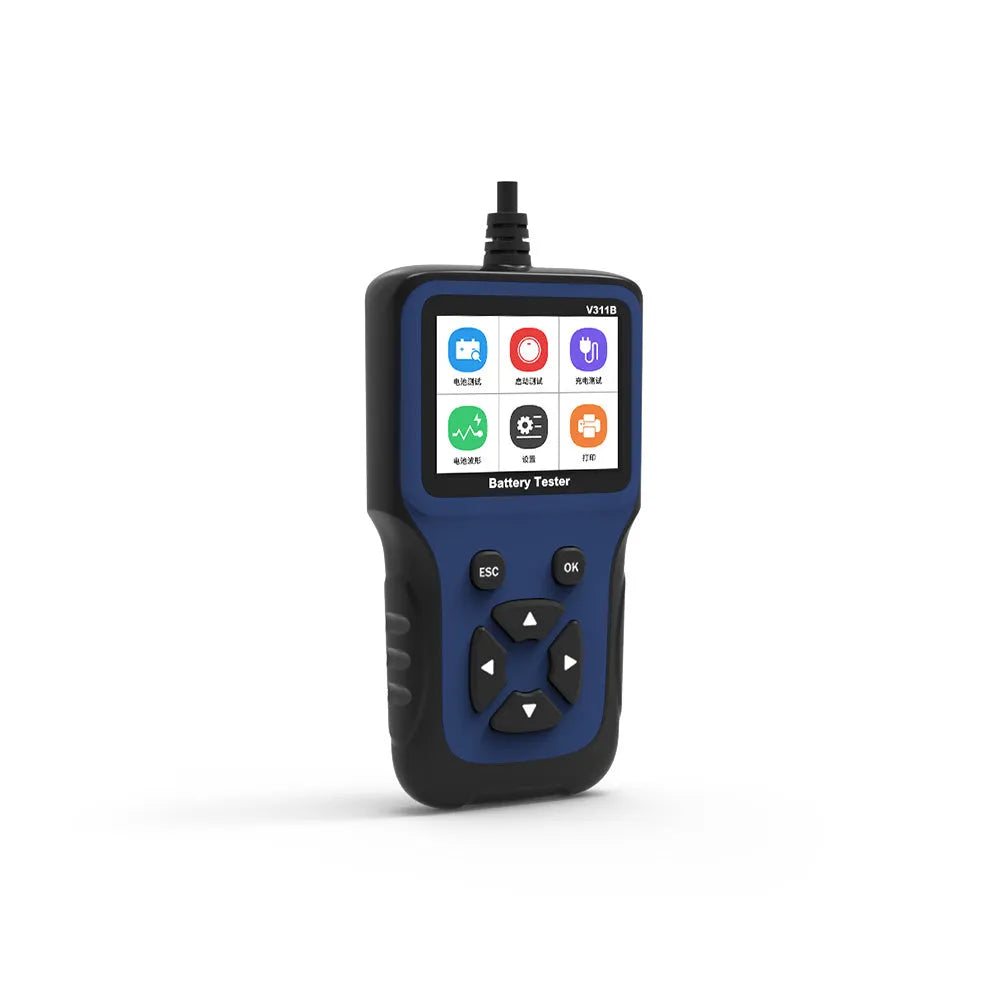

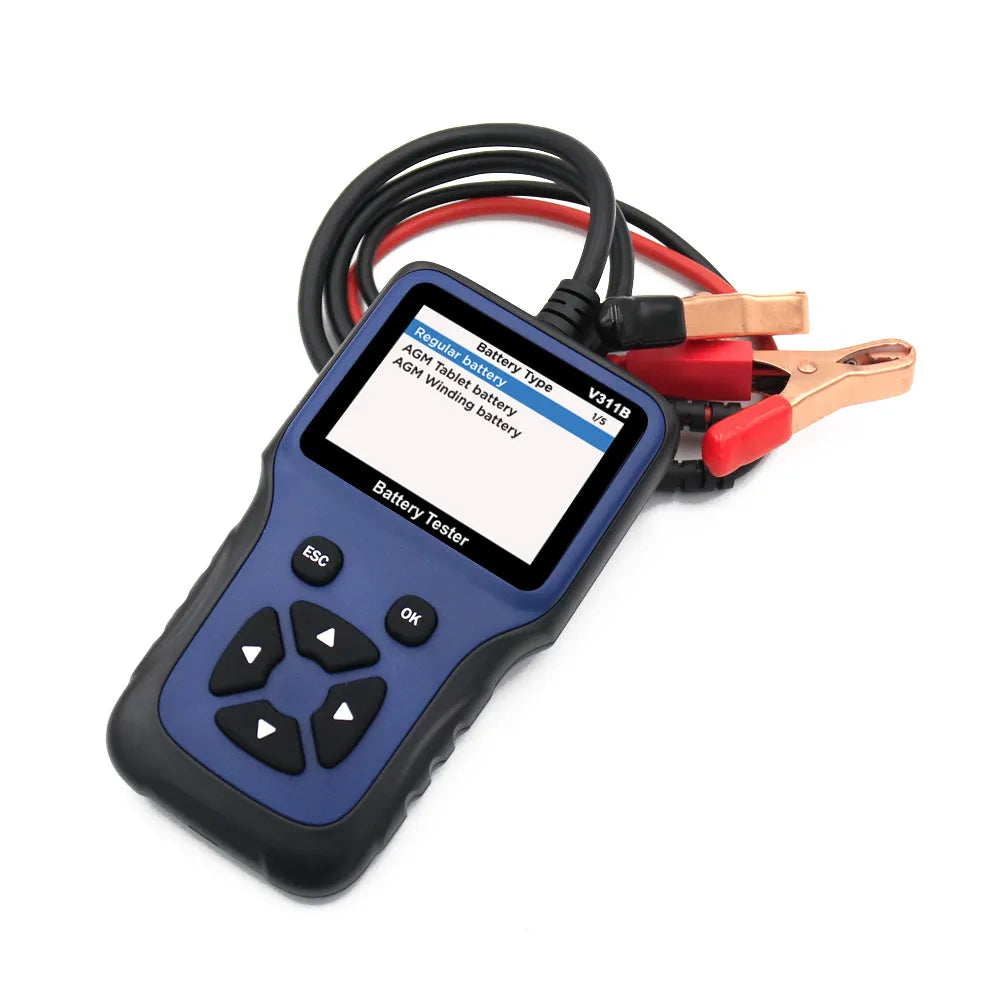

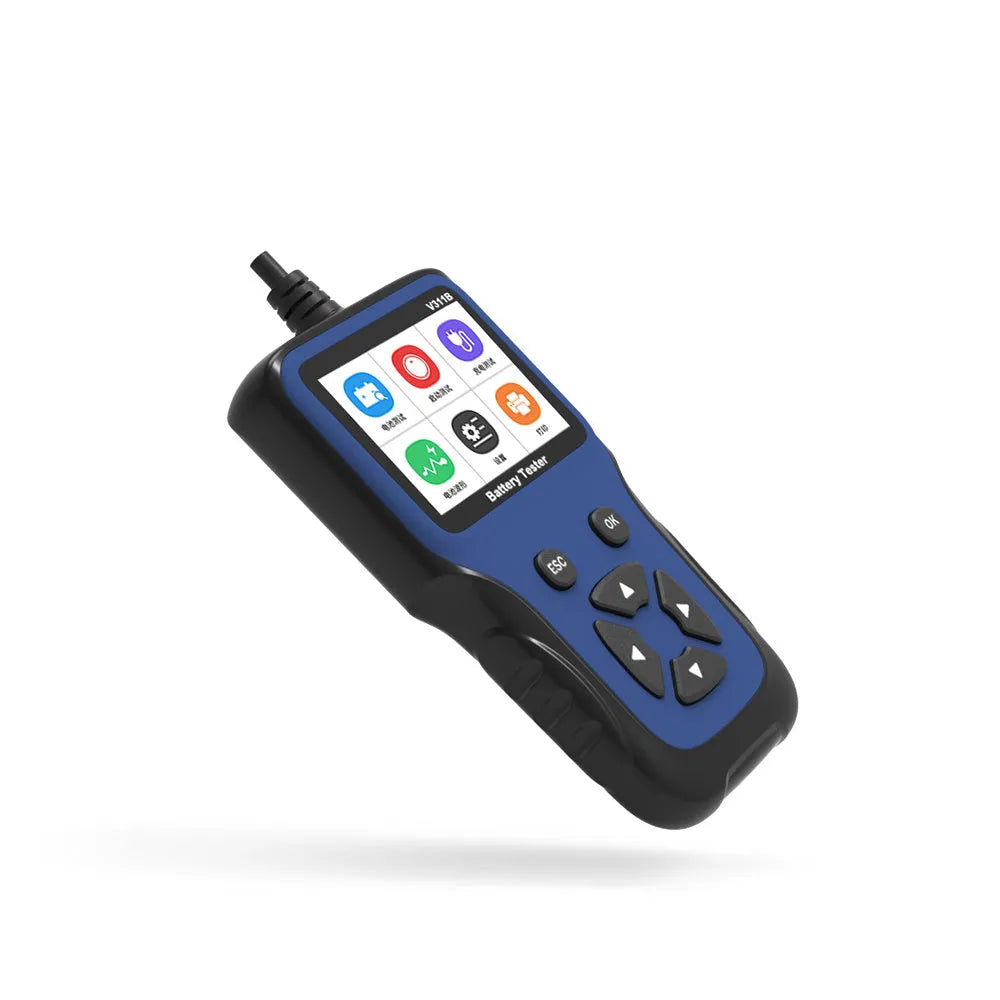

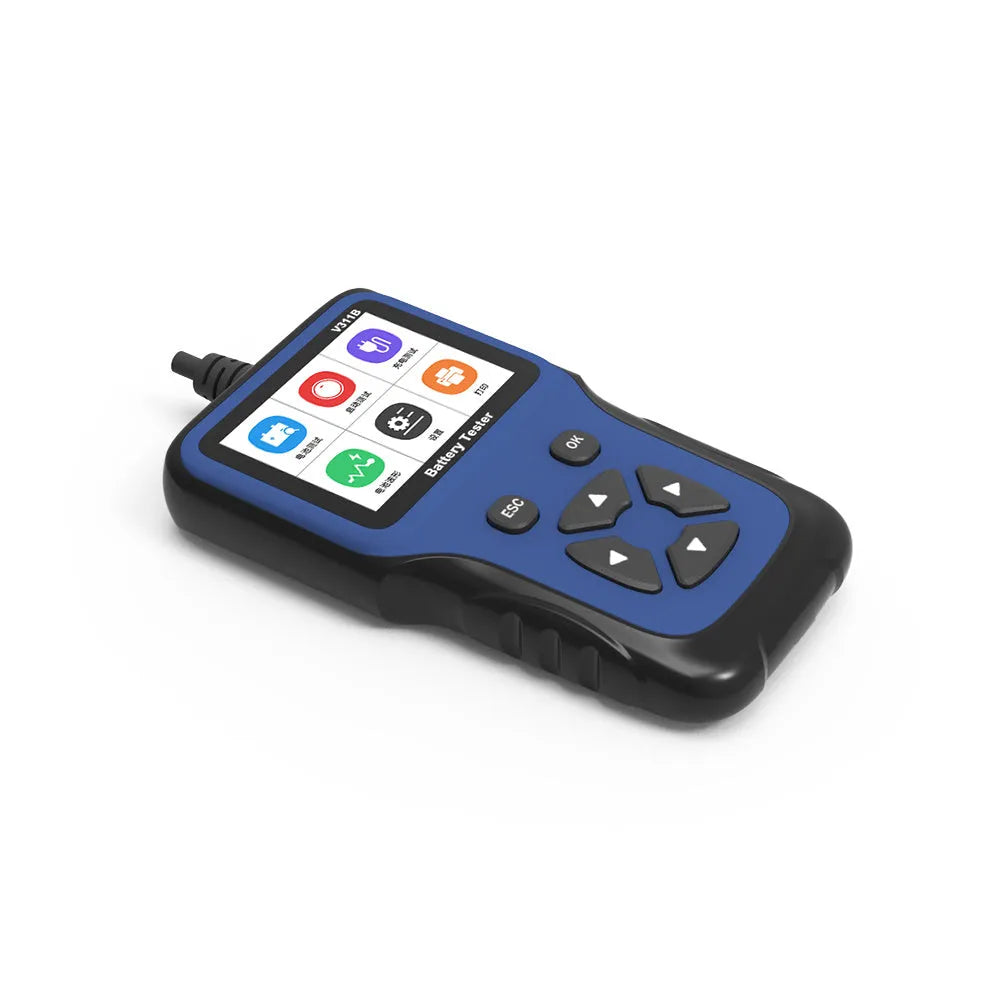

This automotive diagnostic device is built around an APM32F103VCT6 main control chip and operates from 9-18V. It checks battery voltage, battery impedance, residual power, battery life and cold start current. The 2.8 inch colour screen supports nine languages: English, Chinese, Portuguese, Italian, French, German, Spanish, Polish and Russian. Measuring ranges cover CCA 100-2000A, BCI 100-2000A, CA 100-2000A, MCA 100-2000A, JIS 26A17-24SH52, DIN 100-1400A, IEC 100-1400A, EN 100-2000A, SAE 100-2000A and GB 10-250Ah. The product measures 156 x 88 x 24mm and comes with a pair of reverse black and red alligator clips on a 1m cable. Operating temperature range is -20 to 60 degrees Celsius, and storage temperature range is -20 to 70 degrees Celsius.
Features and Construction
The device combines a compact control unit with a colour display and alligator clip connections. It covers several battery test standards and provides readings for voltage, impedance, residual power, battery life and cold start current.
Material and Build

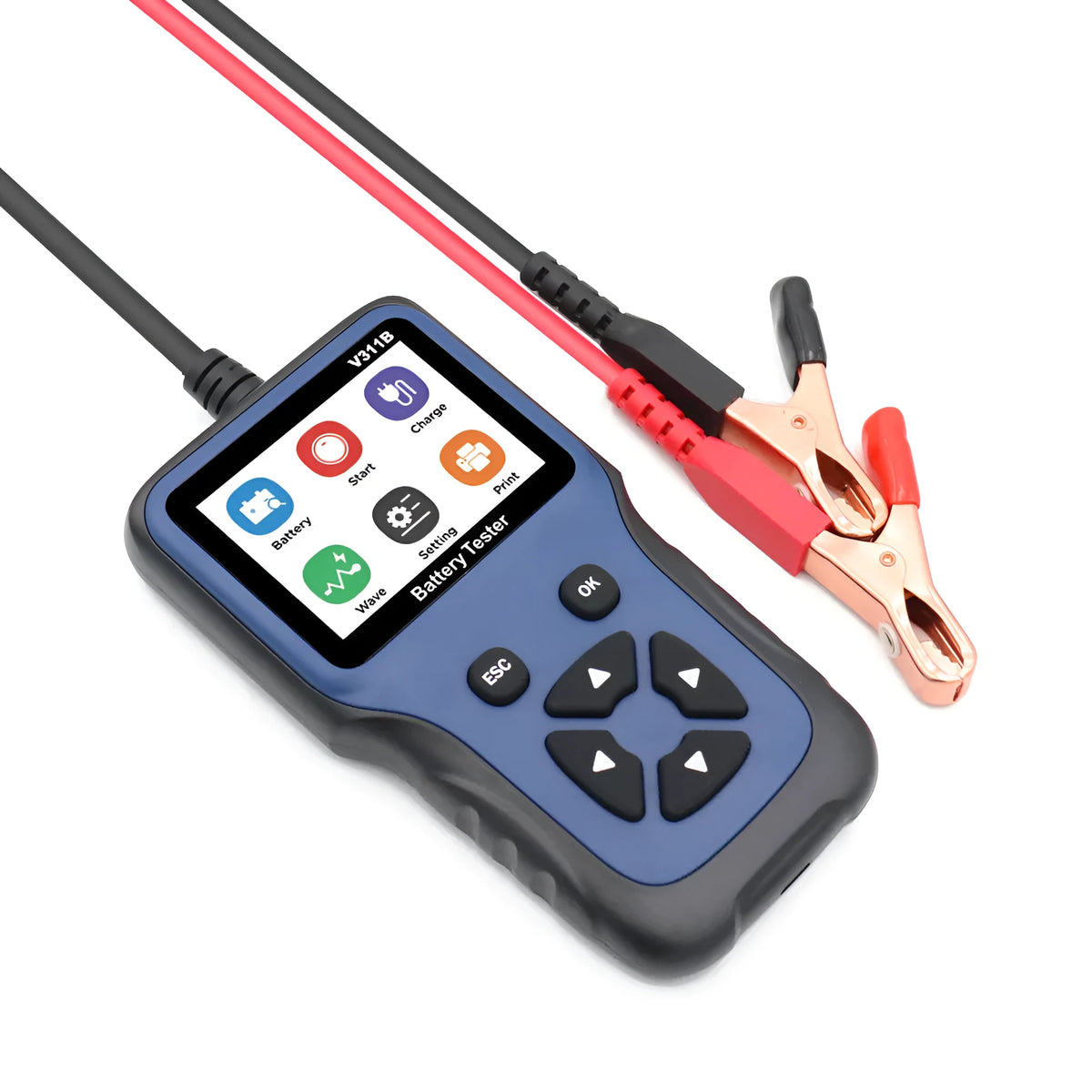

The main control chip is an APM32F103VCT6. The connector type is a pair of reverse black and red alligator clips with a cable length of 1 m. The unit operates from 9-18V and is designed for a product size of 156 x 88 x 24mm.
Size and Practical Fit
The product measures 156 x 88 x 24mm, and the package measures 200 x 130 x 43mm. These dimensions describe the physical size of the unit and its packaging. The 1m cable length gives some reach between the device and the battery terminals.
Uses and Placement
This diagnostic device is used for checking battery condition through voltage, impedance, residual power, battery life and cold start current tests. It can be used in automotive settings where battery diagnostics are required.
Event or Professional Use
In professional or workshop settings, the device supports multiple measuring standards including CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE and GB. The 2.8 inch colour screen and nine language options can help users read test results in their preferred language.
Everyday Home Use
For home use, the alligator clips connect to battery terminals, and the device checks voltage, impedance, residual power, battery life and cold start current. The compact 156 x 88 x 24mm size makes it easy to keep in a tool area or vehicle.
Benefits and Buying Value
The device provides several battery test functions in one unit. It supports a wide range of measuring standards and includes a colour screen with multiple language options.
Reuse and Low Maintenance
The device is powered by the battery being tested, operating from 9-18V, so no separate power source is described in the source text. The alligator clips and 1m cable are part of the unit. Store within -20 to 70 degrees Celsius and operate within -20 to 60 degrees Celsius.
Why Choose This Product
This product offers battery voltage, impedance, residual power, battery life and cold start current testing. It uses an APM32F103VCT6 chip, has a 2.8 inch colour screen, supports nine languages and includes a pair of reverse black and red alligator clips with a 1m cable. Measuring ranges cover CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE and GB standards.
