BMW OBD2 Diagnostic Adapter: 20-Pin to 16-Pin Connector Cable

For owners and technicians working with certain BMW models, accessing the onboard diagnostic system can require a specific interface. This adapter cable provides a direct physical link between the modern, universal 16-pin OBD2 connector found on standard diagnostic tools and the legacy 20-pin diagnostic socket present on some BMW vehicles. It solves the practical problem of compatibility, allowing a wide range of contemporary code readers and scan tools to communicate with the vehicle's computer. By converting the pin connection, it enables standardised fault code reading, live data streaming, and system checks without needing a dedicated, model-specific scanner, offering a cost-effective and versatile solution for basic to intermediate diagnostic work on compatible BMWs.

Features and Construction

This is a purpose-built adapter designed around two specific electrical interfaces. Its primary function is pin conversion, physically and electrically linking the two defined standards to allow data communication.

Material and Build

The product is described as a connecting cable. While the exact materials used for the wire conductors, insulation, and moulded connector housings are not detailed in the source, such cables are typically constructed from copper strands for conductivity, surrounded by PVC or similar insulation, with moulded plastic ends for durability. The build quality focuses on maintaining correct pin-to-pin connections to ensure reliable data transmission between the scanner and the vehicle's ECU. The stated wide operating temperature range suggests the materials are selected to remain functional in typical garage and workshop conditions.

Size and Practical Fit

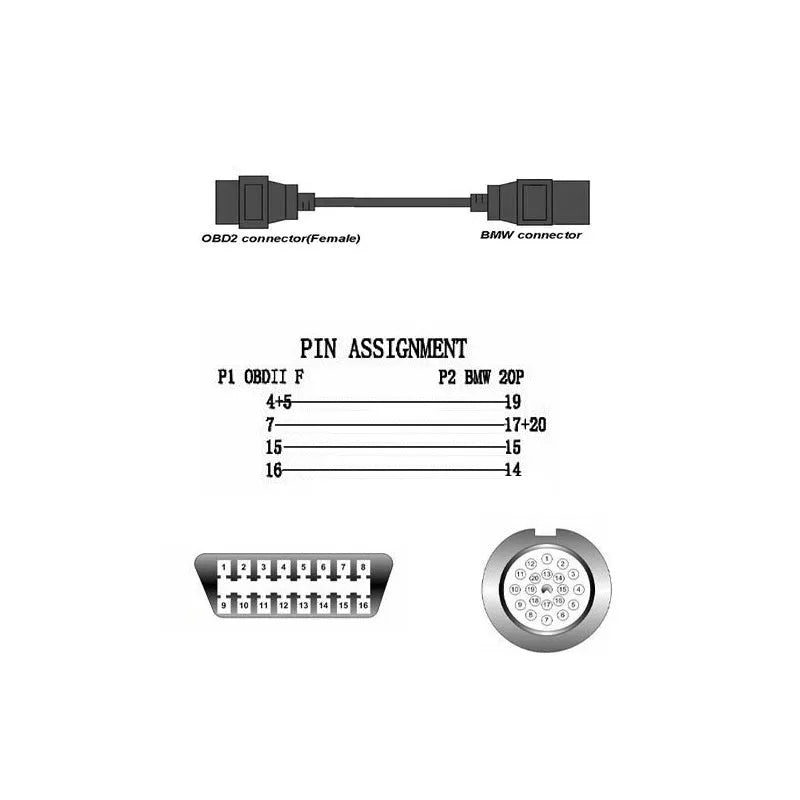

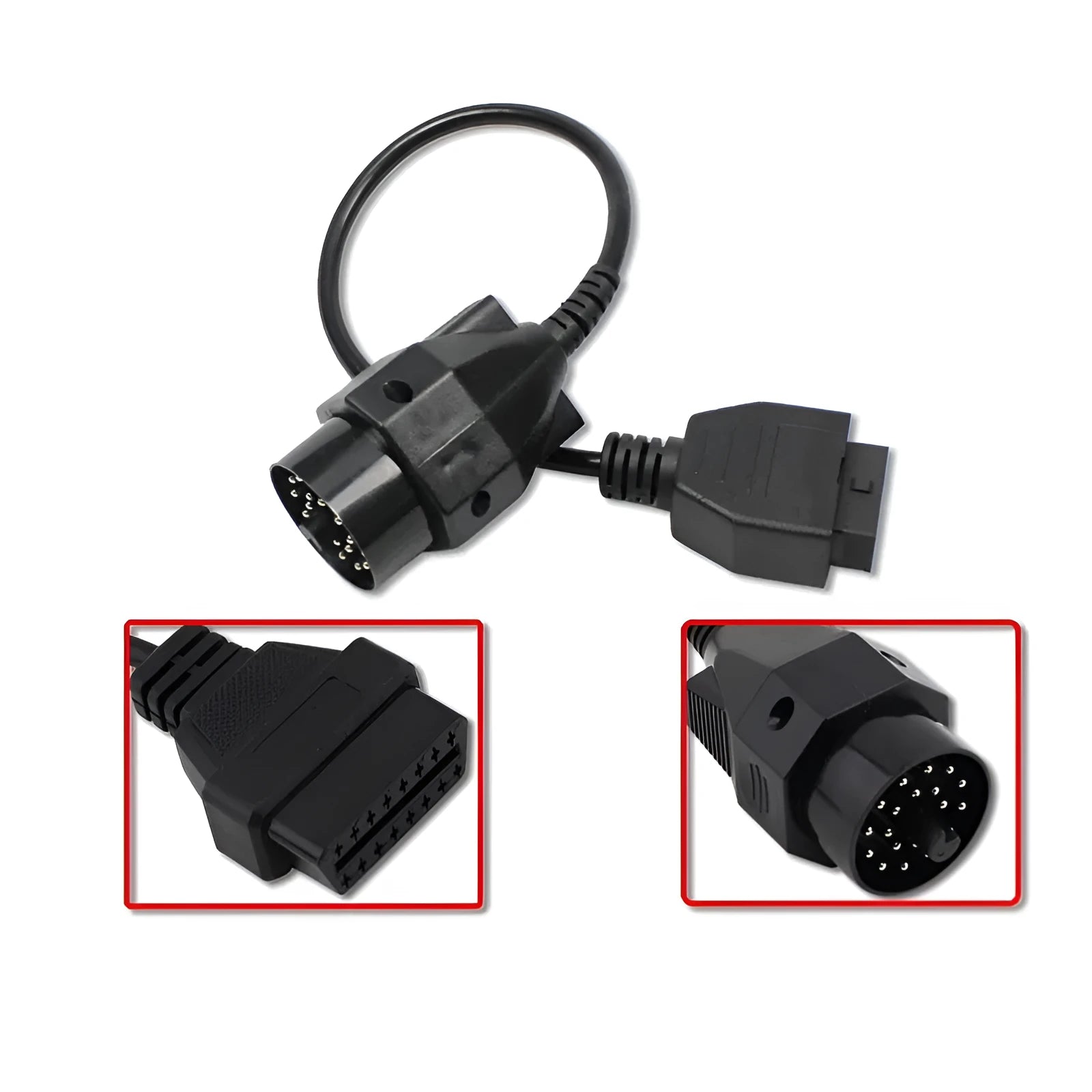

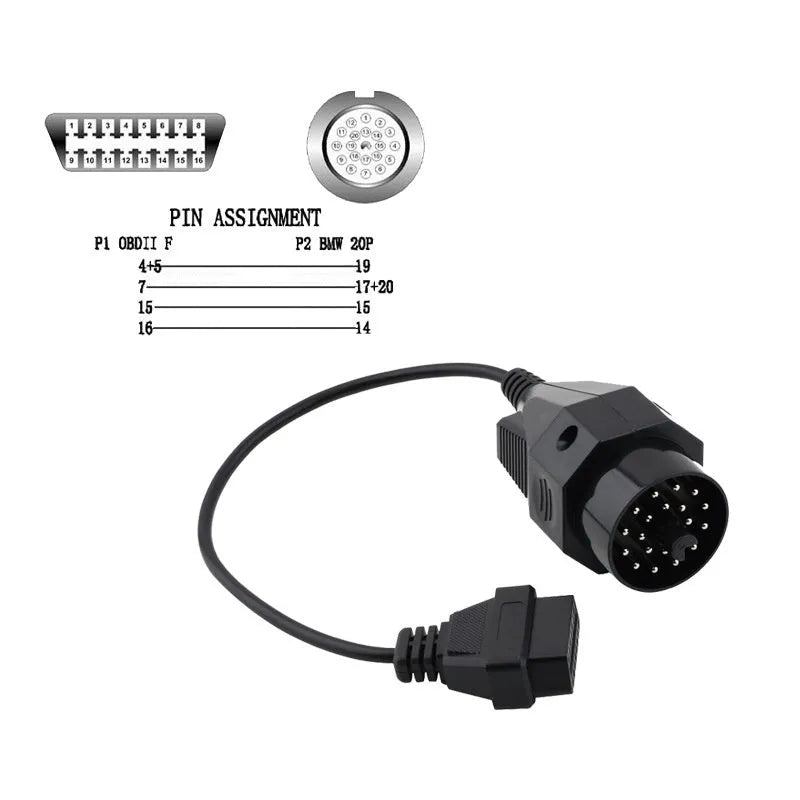

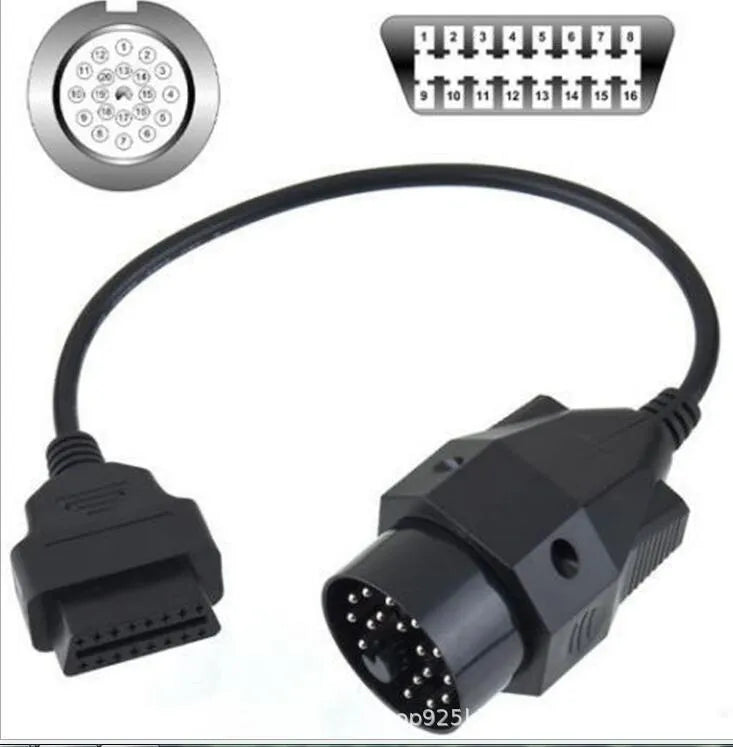

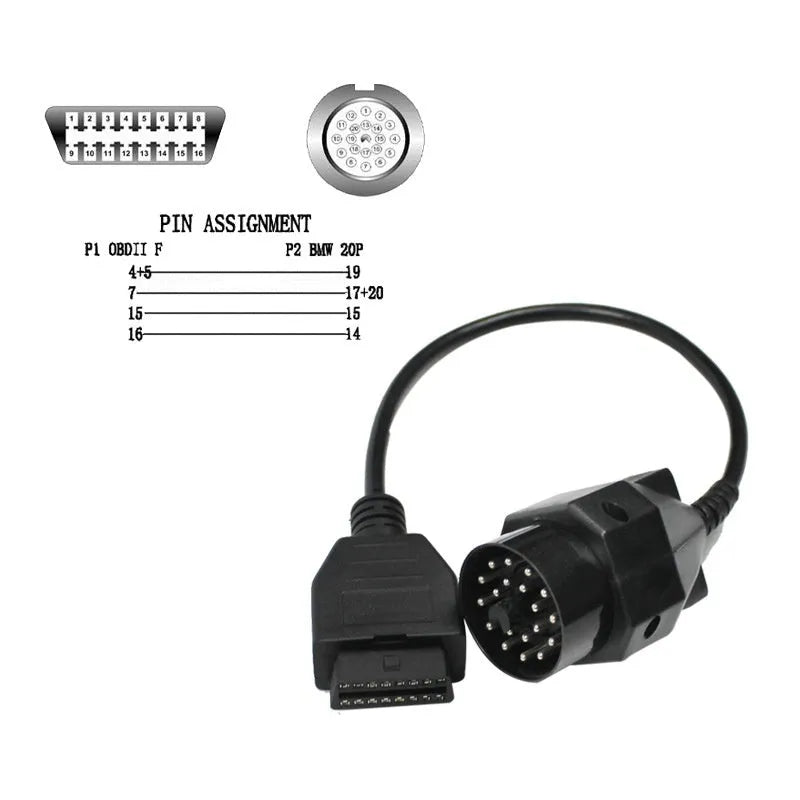

The source does not provide the cable's length, which is a key practical consideration. The length will determine how conveniently a technician can position their diagnostic tool relative to the vehicle's diagnostic port, often located under the dashboard. A standard length for such adapters is typically between 15cm and 30cm, providing enough slack for comfortable connection without excess clutter. The connectors themselves are moulded to the specific 20-pin and 16-pin OBD2 shapes, ensuring a secure, keyed fit that prevents incorrect insertion and potential damage to the pins on either the vehicle or the tool.

Uses and Placement

This adapter has a clear and specialised application within automotive maintenance and troubleshooting. It serves as an essential tool for anyone needing to perform electronic diagnostics on relevant BMW models.

Event or Professional Use

In a professional workshop or garage setting, this cable allows a single, standard OBD2 scanner to service a broader range of vehicles, including those with BMW's older 20-pin port. It increases tool versatility and reduces the need to invest in multiple manufacturer-specific interfaces. For mobile mechanics or roadside assistance, carrying this compact adapter alongside a standard scanner means being prepared for a common compatibility issue on the road, enabling quicker fault identification for compatible BMWs without carrying excessive specialised equipment.

Everyday Home Use

For the BMW DIY enthusiast or home mechanic, this adapter unlocks the capability to use affordable, widely available OBD2 code readers and basic scan tools on their vehicle. This empowers owners to read check engine lights, clear fault codes after repairs, and monitor basic sensor data, fostering a greater understanding of their car's health. It turns a generic, sub-£50 code reader into a usable tool for their specific BMW, representing significant value and convenience compared to more expensive, brand-dedicated diagnostic systems.

Benefits and Buying Value

The value of this product lies in its specific problem-solving capability and the practicality it adds to a standard diagnostic toolkit.

Reuse and Low Maintenance

As a passive adapter cable with no internal electronics, it requires virtually no maintenance and has a long potential lifespan. It is not firmware-dependent and will not become obsolete through software updates. A user can employ it repeatedly with any compatible 16-pin OBD2 tool on any compatible 20-pin BMW model for years. There are no batteries to replace or internal components that can wear out from standard use, assuming careful handling to avoid pin damage or wire breakage.

Why Choose This Product

This adapter addresses a known compatibility gap directly and simply. The alternative for accessing a BMW 20-pin port often involves purchasing a more expensive scanner that includes the specific cable or adapter, or buying a dedicated BMW diagnostic tool altogether. This single cable provides a focused, economical bridge. Its stated compatibility with the 12V system and wide operating temperature range confirms its suitability for the intended automotive environment. When the need arises to connect a standard tool to a specific car, this product delivers a straightforward, single-component solution.
